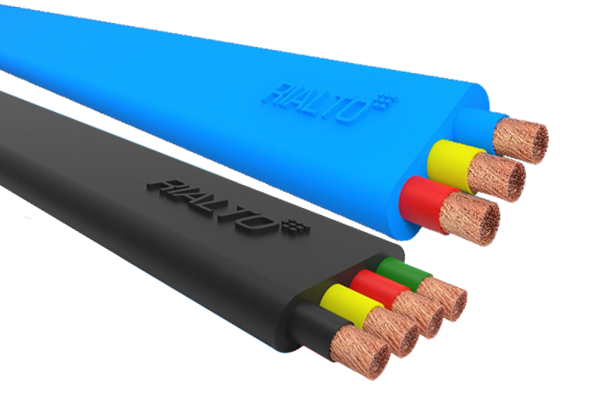

A Submersible Pump Cable is a specialized product to be used for submersible pump in a deep well. The area of installation is physically restrictive, and the environment is very hostile. Rialto is designed and manufacured keeping in mind these factors to achieve the highest possible degree of reliability.



Application

  • AWG Pump Cables designed for use as submersible pump, deep well and motor lead cable.
  • It Works up to the depth of500 m and water temperature up to+90°C.
  • Cables are designed and manufactured to achieve the highest possible degree of reliability.


Features


Cable features (PVC Pump Cables)
  • Exceptional long term performance
  • Suitable for 90°C dry & 75°C wet
  • Excellent resistant to oils, chemicals, ozone & solvents
  • Excellent Electrical Properties and Excellent Impact, Weather Resistant
  • Tested by INTERTEK, SGS, EIL, RITES, NPC

Cable features (PVC Pump Cables)
  • 90°C oil, zone & water resistant rubber insulation
  • Exceptional long term performance
  • RoHS compliance
  • Excellent resistant to oils, chemicals, ozone & solvents
  • Excellent Electrical Properties and Excellent Impact, Weather Resistant
  • Tested byINTERTEK, SGS, EIL, RITES, NPC
CABLE STRUCTURE
Generally Conforms to,BS EN 50525, CENELEC HD 21, UL-83, IEC 60227, BS 6500, DIN VDE 0281, IS 694
Copper : EC flexible copper as per ASTM B-3, IEC 60228, DIN VDE 0295
Insulation : TW,THW,THHW,THW-2

*Any other Color on specific request can also be supplied.


Technical data PVC pump cable
Insulation: Special PVC- as per UL 83
Outer Sheath: Special PVC- as per UL 83
Operating Temp: -40°c to max.+90°C
Nominal voltage: 600 V
Test voltage: 2000 V
Flame propagation: Flame retardant test as perUL 83, VW-1

Technical data Rubber pump cable
Insulation: Special Rubber- as per UL 83
Outer Sheath: Special Rubber- as per UL 83
Operating Temp: -40°c to max.+90°C
Nominal voltage: 600 V
Test voltage: 2000 V
Flame propagation: Flame retardant test as per UL 83, VW-1

CE =The Product is confirmed with the EC to the Low Voltage Directive 73/23/EEC




Core Color : Core Identification

Color Coding AS Per UL 83
3 Core without ground Red, Yellow and Black
4 Core with ground Red, Yellow, Black and Green


Technical Data Table

Flat Jacketed Submersible Pump Cables Without Ground
Cross sectional area
of conductor
No of conductor Configuration Nominal thickness
of sheath
Mean overall dimeter
width x height
AWG Nos. Nos. x Dia mm mm
14 3.0 41 x 0.254 1.15 14.60 x 6.40
12 3.0 65 x 0.254 1.15 16.80 x 7.40
10 3.0 105 x 0.254 1.15 18.70 x 7.90
8.0 3.0 168 x 0.254 1.4 23.70 x 9.90
6.0 3.0 226 x 0.254 1.4 28.00 x 11.40
4.0 3.0 420 x 0.254 2.0 35.50 x 14.70
2.0 3.0 665 x 0.254 2.0 39.50 x 16.20
1.0 3.0 817 x 0.254 2.2 45.50 x 18.30
1/0 3.0 1045 x 0.254 2.2 45.50 x 18.30
2/0 3.0 1330 x 0.254 2.2 51.00 x 20.00
3/0 3.0 1672 x 0.254 2.4 60.00 x 23.50
4/0 3.0 2116 x 0.254 2.65 65.00 x 25.00

Flat Jacketed Submersible Pump Cables With Ground
Cross sectional area
of conductor
No of conductor Configuration Nominal thickness
of sheath
Mean overall dimeter
width x height
AWG Nos. Nos. x Dia mm mm
14 4.0 41 x 0.254 1.15 18.00 x 6.50
12 4.0 65 x 0.254 1.15 21.00 x 7.60
10 4.0 105 x 0.254 1.15 24.30 x 7.90
8 4.0 168 x 0.254 1.4 29.70 x 9.90
6 4.0 226 x 0.254 2.0 36.00 x 11.80
4 4.0 420 x 0.254 2.0 45.10 x 14.70
2 4.0 665 x 0.254 2.2 50.10 x 16.20
1 4.0 817 x 0.254 2.2 58.10 x 19.00
1/0 4.0 1045 x 0.254 2.2 58.10 x 19.00
2/0 4.0 1330 x 0.254 2.2 66.50 x 21.50
