Application

  • Fixed installation in conduits and under plaster.
  • For appliance wiring and distribution station like Commercial Complexes, Buildings, Factories, Commercial construction, Hospitals and Residencies Apartments etc.
  • Standard length cable packing: Coils 90m & 180m in carton boxes, reels.

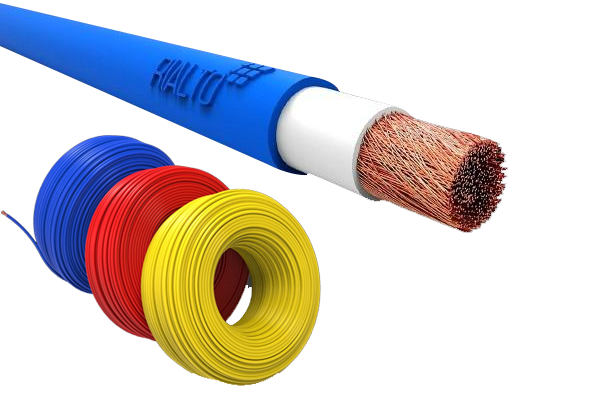

FR PVC Insulated cable

  • High flame retardant properties
  • Excellent resistant to moisture, abrasion, grace, oil
  • Longer flex life
  • Excellent mechanical & electrical properties
  • Tested by SGS, EIL, RITES, NCP, INTERTEK
  • Steam and boiling Water Resistant


FRLS PVC Insulated cables

  • Better Flame retardant property
  • Less Halogen acid gas evolution
  • Resistant to moisture, abrasion, grace, oil
  • Excellent mechanical & electrical properties


ZHFR Cable

  • Zero Halogen acid gas evolution
  • Non corrosive and non toxic insulation
  • High temperature resistant insulation
  • Resistance to tarnishing of copper
CABLE STRUCTURE
Generally Conforms to, IS 694, BS 6004, IEC 60227, DIN VDE 0281-3, IS 8130 & IS 5831C
Conductor: EC flexible copper class5 generally conforms to IEC 60228, IS 1830
Insulation: FR+HR/FRLS-H/ZHFR Insulation compound with a high insulation resistance value. (-15° C to +70° C / +90° C/ +105° C)
Colour: Blue, Red, Brown, Grey, Orange, White, Green, Yellow.

*Any other Color on specific request can also be supplied

TECHNICAL DATA
Operating Temperature: -25°c to max.+90°C
Nominal Voltage: 450/750 V
Test Voltage: 2500 KV
Min. bending radius: 8 x cable diameter
Flame propagation: Flame retardant test as perIEC 60332-1

CE =The Product is confirmed with the EC to the Low Voltage Directive 73/23/EEC




Technical Data Table

 FR/FRLS/ZHFR UP TO 1100 V.
Nominal cross section area of conductor      Number/Nominal          dia of strands Nominal insulation thickness Max. Overall Diameter Max. conductor resistance at 20⁰C Current rating
Casing Concealed
sqmm mm mm mm Ω/km Amps Amps

1.0

14/0.30*

0.7

2.8

18.1

14

13

1.5

22/0.30*

0.7

3.0

12.1

18

16

2.5

36/0.30*

0.8

3.7

7.41

24

20

4.0

56/0.30**

0.8

4.2

4.95

32

26

6.0

84/0.30**

0.8

4.8

3.30

42

35

  • *class 2 Stranded conductor
  • **Class 5 Flexible conductor

F R Properties

Test

Specified

Specified Values

Limited Oxygen Index Test

IS 10810-58

>29%

Limited Temperature Index Test

IS 10810-64

>250*

F R L S / ZHFR Properties

Test

Specified

Specified Values

Limited Oxygen Index Test

ASTM-D 2863

>32%

Limited Temperature Index Test

ASTM-D 2863

>250*

Smoke Density (Light Absorption)

ASTD-D 2843

<50%

Acid Gas Generation

IEC- 60754-1

<18%
