Cable Design

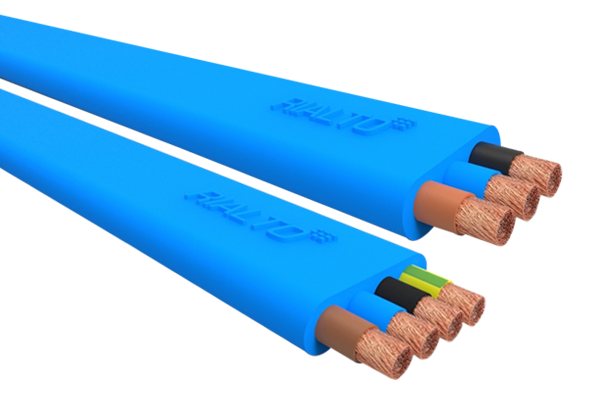

A Submersible Pump Cable is a specialized product to be used for submersible pump in a deep well. The area of installation is physically restrictive, and the environment is very hostile. Rialto is designed and manufacured keeping in mind these factors to achieve the highest possible degree of reliability.



Application

  • Submersible Pump Cables are used as supply and control cables.
  • These cables are used in submersible pumps, underwater lighting, and floating switches etc.
  • Up to the depth of 500 m and water temperature up to +75°C.
  • These cables are ideal for outer installations in dry, moist and wet environments but however not suitable for explosive areas.
  • Cables are designed and manufactured to achieve the highest possible degree of reliability.
  • Standard length cable packing:
  • Coils 100, 200, 300 and 500, 1000m. in wooden reels


Features

  • Meets the requirement of CENELEC HD 22.1.S2, DIN VDE 0282 PART 810, UL-83 IEC 245, CEI 20-19 & BS 6007, BS  6899
  • Temperature range -40° to +90°
  •  Designed for heavy duty use
  • Cut, tear & abrasion resistant
  • Exceptional long term performance
  • Excellent resistant to oils, chemicals, ozone & solvents
  • Excellent Impact Resistant
  • Excellent Weather Resistant
  • Performs & Looks like Vulcanize Rubber
  • Excellent Electrical Properties
  • Approved by GWSSB, GWRDC, TWAD, PHED, PSTC, ONGC
  • Tested by INTERTEK,SGS, EIL, RITES, NPC
  • The area of installation is physically restrictive, and the environment is very hostile.
CABLE STRUCTURE
Generally Conforms to,BS EN 50525, CENELEC HD 22.1.S2, DIN VDE 0282 part 810, IEC 245, CEI 20-19 & BS 6007, BS 6899
Copper : EC flexible copper generally conforms toIEC 60228, DIN VDE 0295, IS 8131
Insulation : Water resistant EPDM base rubber.
Outer Sheath : Special Rubber sheathed Lead free compound
PVC Drincable Structure:
Generally Conforms to, BS EN 50525, HD 21, UL-83,IEC 60227, BS 6500, DIN VDE 0281, IS 694
Copper: EC flexible copper generally conforms toIEC 60228, DIN VDE 0295, IS 8131
Insulation : LEAD Free PVC.
Outer Sheath : LEAD Free PVC

*Any color can be supplied as per the requirement and wish of the buyer.

TECHNICAL DATA
Operating Temperature: EPDM: -40°C to max. +90°C
PVC : -20°C to max. +80°C
Nominal Voltage:1100v
Test Voltage: 3000v
Min. Bending Radius:6 x Cable diameter
Flame Propagation: Flame retardant test as per IEC 60332-1

CE =The Product is confirmed with the EC to the Low Voltage Directive 73/23/EEC






Core Color : Core Identification

Color Coding AS Per BS EN 50525 & IEC 60227 AS Per IS 694
3 Core Black, Light Blue and Brown Red, Yellow and Blue
4 Core Black, Light Blue, Brown, Yellow with
Green Line / Green with Yellow Line
Red, Yellow, Blue Green/Black

Technical Data Table

3 Core Flat - Drincable

Conductor Rubber Insulation Rubber Sheath Conductor Resistance at 20°C (max) Current Rating at 30°C
Nominal Area in Nos. & Dia. of wire Nominal Thickness Nominal Core Dia. Nominal Thickness Approx. Overall Dimensions
Thickness Width
Sq. mm. Nos./mm mm mm mm mm mm Ω/km Amps.
1.5 22/0.30 0.8 3.25 1.15 6.0 12.8 12.1 26
2.5 36/0.30 0.9 3.84 1.15 6.4 14.6 7.41 36
4.0 56/0.30 1.0 4.50 1.15 7.4 16.8 4.95 49
6.0 84/0.30 1.0 5.30 1.15 7.9 18.7 3.30 63
10 140/0.30 1.0 6.50 1.40 9.9 23.7 1.91 86
16  224/0.30 1.0 8.00 1.40 11.4 28.0 1.21 115
25 350/0.30 1.2 10.10 2.00 14.7 35.5 0.78 149
35 490/0.30 1.2 11.30 2.00 16.2 39.5 0.554 185
50 703/0.30 1.4 13.60 2.20 18.3 45.5 0.386 225
70 988/0.30 1.4 15.30 2.20 20.0 51.0 0.272 289
95 1349/0.30 1.6 18.00 2.40 23.5 60.0 0.206 352



4 Core Flat - Drincable

Conductor Rubber Insulation Rubber Sheath Conductor Resistance at 20°C (max) Current Rating at 30°C
Nominal Area in Nos. & Dia. of wire Nominal Thickness Nominal Core Dia. Nominal Thickness Approx. Overall Dimensions
Thickness Width
Sq. mm. Nos./mm mm mm mm mm mm Ω/km Amps.
1.5 22/0.30 0.8 3.25 1.3 6.0 15.8 12.1 23
2.5 36/0.30 0.9 3.84 1.3 6.5 18.0 7.41 32
4 56/0.30 1.00 4.5 1.45 7.6 21.0 4.95 42
6 84/0.30 1.00 5.3 1.5 7.9 24.3 3.30 54
10 140/0.30 1.00 6.5 1.8 9.9 29.7 1.91 75
16  224/0.30 1.00 8.0 1.95 11.8 36.0 1.21 100
25 350/0.30 1.20 10.1 2.0 14.7 45.1 0.780 127
35 490/0.30 1.20 11.5 2.0 16.2 50.1 0.554 158
50 703/0.30 1.40 13.6 2.2 18.3 58.1 0.386 192
70 988/0.30 1.40 15.3 2.2 20.0 66.5 0.272 246
95 1349/0.30 1.60 18.0 2.4 23.5 77.3 0.206 298
