HO5V-U, HO7V-U



Cable Design

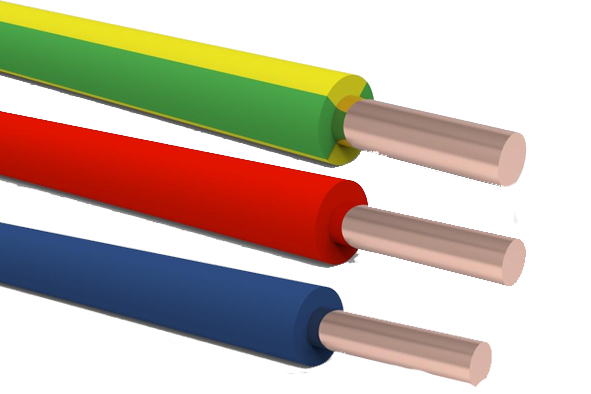

A Harmonize Standard Cable is a specialized product to be used for submersible pump in a deep well. The area of installation is physically restrictive, and the environment is very hostile. Rialto is designed and manufacured keeping in mind these factors to achieve the highest possible degree of reliability.



Application

  • Fixed installation in conduits and under plaster, for appliance wiring and distribution stations
  • Standard length cable packing: Coils 100 and 200 m in carton boxes, reels


Features

  • Good application of insulation
  • High current carrying capacity
  • Excellent resistant to moisture, abrasion, grace, oil
  • Excellent mechanical & electrical properties
  • Harmonized acc. to European standards
  • Steam and boiling water resistant
  • Tested by SGS, EIL, RITES, NPC, INTERTEK
CABLE STRUCTURE
Conductor: Solid copper conductor, class 1 DIN VDE 0281,IEC 60228
Insulation : PVC insulation compound TI-1
Colour : Green/Yellow, Blue, Black, Brown, Gray, Orange, Pink, Red, Violet, White, Green, Yellow or other colours
Flame propagation: Flame retardant test as per IEC 60332-1
TECHNICAL DATA
Operating Temperature: -20°C max. +80°C
Nominal Voltage:HO5V-U : 300/500 V
HO7V-U : 450/750 V
Test Voltage: HO5V-U : 2000 V
HO7V-U : 2500 V
Insulation resistance:Min. 10 MΩ x km
Min. bending radius: 4 x cable diameter


CE =The Product is confirmed with the EC to the Low Voltage Directive 73/23/EEC




HO5V2-U, HO7V2-U



Cable Design

A Harmonize Standard Cable is a specialized product to be used for submersible pump in a deep well. The area of installation is physically restrictive, and the environment is very hostile. Rialto is designed and manufacured keeping in mind these factors to achieve the highest possible degree of reliability.



Application

  • Fixed installation in conduits and under plaster, for appliance wiring and distribution stations
  • Standard length cable packing: Coils 100 and 200 m in carton boxes, reels


Features

  • Good application of insulation
  • High current carrying capacity
  • Excellent resistant to moisture, abrasion, grace, oil
  • Excellent mechanical & electrical properties
  • Insulation is highly thermal stable
  • Harmonized acc. to European standards
  • Steam and boiling water resistant
  • Tested bySGS, EIL, RITES, NPC, INTERTEK
CABLE STRUCTURE
Conductor: Solid copper conductor, class 1 DIN VDE 0281,IEC 60228
Insulation : Heat - resistant polyvinyl chloride (PVC) insulation
Colour : Green/Yellow, Blue, Black, Brown, Grey, Orange, Pink, Red, Violet, White, Green, Yellow or other colours
Flame propagation:  Flame retardant test as per IEC 60332-1
TECHNICAL DATA
Operating Temperature: -20°C max. +80°C
Nominal Voltage: HO5V2-U : 300/500 V
HO7V2-U : 450/750 V
Test Voltage: HO5V2-U : 2000 V
HO7V-U : 2500 V
Insulation resistance:Min. 10 MΩ x km
Min. bending radius: 4 x cable diameter


CE =The Product is confirmed with the EC to the Low Voltage Directive 73/23/EEC





Technical Data Table

HO5V-U 300/500 V , HO5V2-U 300/500 V
Nominal cross sectional area of conductor Nominal insulation thickness Mean overall diameter Max conductor resistance at 20°C Min insulation resistance at 70°C
Lower limit Upper limit
sqmm mm mm mm Ω / km MΩkm
0.5 0.6 1.9 2.3 36.0 0.014
0.75 0.6 2.1 2.5 24.5 0.013
1.0 0.6 2.2 2.7 18.1 0.011
  • All are class 1 solid conductor
  • Insulation grade is TI1


HO7V-U 450/750 V , HO7V2-U 450/750 V
Nominal cross sectional area of conductor Nominal insulation thickness Mean overall diameter Max conductor resistance at 20°C Min insulation resistance at 70°C
Lower limit Upper limit
sqmm mm mm mm Ω / km MΩkm
1.5 0.7 2.6 3.2 12.1 0.011
2.5 0.8 3.2 3.9 7.41 0.010
4.0 0.8 3.6 4.4 4.61 0.0087
6.0 0.8 4.1 5.0 3.08 0.0074
10.0 1.0 5.3 6.4 1.83 0.0072
  • All are class 1 solid conductor
  • Insulation grade isTI1
