Cable Design

A Harmonize Standard Cable is a specialized product to be used for submersible pump in a deep well. The area of installation is physically restrictive, and the environment is very hostile. Rialto is designed and manufacured keeping in mind these factors to achieve the highest possible degree of reliability.



Application

  • H05VV-F, H05V2V2-FHH05VV-F AND H05V2V2-F cordage is flexible PVC insulated, PVC jacketed harmonized cord recommended for use in electronic and electrical equipment such as office
  • Standard length cable packing: Coils 100 and 200 m in carton boxes, reels


Features

  • Good application of insulation
  • Special heat resistant insulation
  • High current carrying capacity
  • Excellent resistant to moisture, abrasion, grace and oil.
  • Excellent mechanical & electrical properties
  • Harmonized acc. To European standards
  • Steam and boiling water resistant
  • Tested bySGS, EIL, RITES, NCP, INTERTEK

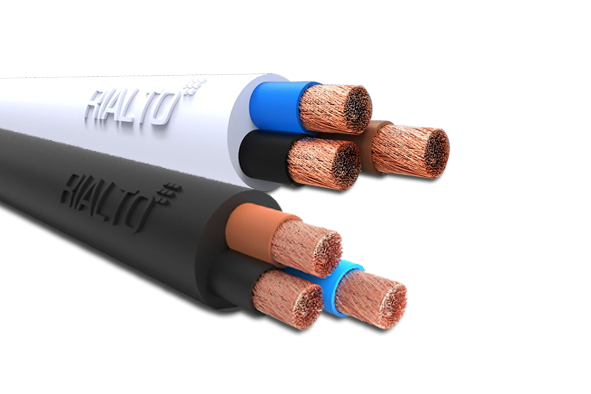

CABLE STRUCTURE
Conductor: Fine Stranded Copper (Class 5 - Flexible Plain Copper) toVDE 0295 IEC 60228
Insulation/sheath: HO5VVF : PVC
HO5V2V2F: Heat Resistant PVC
Colour : White, Black, Blue or as per party order
TECHNICAL DATA
Operating Temperature: H05VV-F -20°c to +80°C
H05V2V2-F -20°c to +90°C
Nominal Voltage: H05VV-F : 300/500 V
H05V2V2-F : 300/500 V
Test Voltage: H05VV-F : 2.5KV
H05V2V2-F : 2.5KV
Insulation resistance:Min. 20 MΩ x km
Min. bending radius: 7 x cable diameter


CE =The Product is confirmed with the EC to the Low Voltage Directive 73/23/EEC





Color Coding: AS IS 1554 ( Indian Standard )

 Single Core 2 Core 3 Core 4 Core 5 Core
Red or Black Red, Black Red, Yellow, Blue Red, Yellow, Blue, Black Red, Yellow, Blue, Black, Grey

Color coding: AS IEC 60502 Part-1, B.S. 6346

Single Core 2 Core 3 Core 4 Core 5 Core
Black or Yellow/Green Blue and Brown or Yellow-Green and Black Brown, Black, Grey or Yellow/Green, Blue, Brown Blue, Brown, Black, Grey or Yellow/Green, Brown, Black, Grey Blue, Brown, Black, Grey, Black or Yellow/Green, Blue, Brown, Black, Grey

Technical Data Table

H05VV-F (300/500 V)
Nominal cross sectional area of conductor Nominal insulation thickness Nominal sheath thickness in mm Max overall diameter in mm Max conductor resistance at 20°C Min insulation resistance at 70°C
2 core 3 core 4 core 5 core 2 core 3 core 4 core 5 core
Lower limit Upper limit Lower limit Upper limit Lower limit Upper limit Lower limit Upper limit
sqmm mm sqmm sqmm sqmm sqmm sqmm sqmm sqmm sqmm sqmm sqmm sqmm sqmm Ω/km MΩkm
0.75 0.6 0.8 0.8 0.8 0.9 5.7 7.2 6 7.6 6.6 8.3 7.4 9.3 26 0.011
1.0 0.6 0.8 0.8 0.9 0.9 5.9 7.5 6.3 8 7.1 9 7.8 9.8 19.5 0.01
1.5 0.7 0.8 0.9 1.0 1.1 6.8 8.6 7.4 9.4 8.4 10.5 9.3 11.6 13.3 0.01
2.5 0.8 1.0 1.0 1.1 1.2 8.4 10.6 9.2 11.4 10.1 12.5 11.2 13.9 7.98 0.0095
4.0 0.8 1.1 1.2 1.2 1.4 9.7 12.1 10.5 13.1 11.5 14.3 13 16.1 4.95 0.0078


H05V2V2-F (300/500 V)
Nominal cross sectional area of conductor Nominal insulation thickness Nominal sheath thickness in mm Max overall diameter in mm Max conductor resistance at 20°C Min insulation resistance at 90°C
2 core 3 core 4 core 5 core 2 core 3 core 4 core 5 core
Lower limit Upper limit Lower limit Upper limit Lower limit Upper limit Lower limit Upper limit
sqmm mm sqmm sqmm sqmm sqmm sqmm sqmm sqmm sqmm sqmm sqmm sqmm sqmm Ω/km MΩkm
0.75 0.6 0.8 0.8 0.8 0.9 5.7 7.2 6 7.6 6.6 8.3 7.4 9.3 26 0.011
1.0 0.6 0.8 0.8 0.9 0.9 5.9 7.5 6.3 8.0 7.1 9.0 7.8 9.8 19.5 0.01
1.5 0.7 0.8 0.9 1.0 1.1 6.8 8.6 7.4 9.4 8.4 10.5 9.3 11.6 13.3 0.01
2.5 0.8 1.0 1.0 1.1 1.2 8.4 10.6 9.2 11.4 10.1 12.5 11.2 13.9 7.98 0.0095
4.0 0.8 1.1 1.2 1.2 1.4 9.7 12.1 10.5 13.1 11.5 14.3 13 16.1 4.95 0.0078
  • All are class 5 flexible conductor
  • Insulation grade is TI3
  • Sheathing grade is TM3
