PVC Flexible Cables

  • Special heat resistant insulation
  • Higher current carrying capacity
  • Fine copper wires
  • Highly thermal stable insulation
  • Excellent resistant to moisture, abrasion, grace, oil
  • Longer flex life
  • Excellent mechanical & electrical properties
  • Tested by SGS, EIL, RITES, NPC, INTERTEK
  • Operating Temp -15° C to +70° C / +90° C / +105°C


Application:

Industrial Cables :

Power wiring to appliance Sockets, Machineries, Industrial lighting, Penal boards, Batteries, D.C. power Transfer etc.

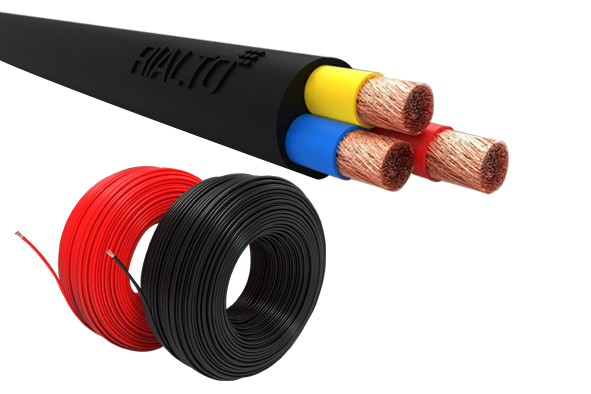

Multi Core Flexible Cable

For the wiring of all types of Control panels, Buildings, factories, relay racks, etc. General purpose house wire is used by Electrical Contractors, Electricians, Municipalities and all major Switchboard manufacturers.



Standard Cable Packing

Standard length cable packing:

Industrial Cables: Coil 90m, 100m, 500m, 2000m, in carton boxes, reels.
Multi core flexible cable: 90m, 100m, 200m, 500m, 1000m in reels.

Color Coding:

AS IS 1554 (Indian Standard)

  2 Cores Cables 3 Core Cables 4 Core Cables
Red, Black Red, Yellow and Blue Red, Yellow, Blue Green/Black

*Any required colours on specific request

Color coding

AS IEC 60502 Part-1, B.S. 6346

 Single Core 2 Core 3 Core 4 Core 5 Core
Black or Yellow/Green Blue and Brown or Yellow-Green and Black Brown, Black, Grey or Yellow/Green, Blue, Brown Blue, Brown, Black, Grey or Yellow/Green, Brown, Black, Grey Blue, Brown, Black, Grey, Black or Yellow/Green, Blue, Brown, Black, Grey

CE =The Product is confirmed with the EC to the Low Voltage Directive 73/23/EEC




Technical Data Table

 Industrial Cables
Single core Industrial flexible Cable up to 1100V
Nominal cross sectional area of  conductor Number/Nominal dia. Of strands Nominal insulation thickness Max. Overall diameter Max. conductor resistance at 20°C current rating

Sq. mm

Mm

Mm

Mm

Ω/km

Amp

0.50

16/0.20

0.60

2.60

39.0

6

0.75

24/0.20

0.60

2.80

26.0

9

1.00

32/0.20

0.60

3.00

19.5

14

1.50

30/0.25

0.60

3.80

13.3

18

2.50

50/0.25

0.70

4.00

7.98

24

4.00

56/0.30

0.80

4.80

4.95

32

6.00

84/0.30

0.80

6.40

3.30

42

10.00

140/0.30

1.00

8.00

1.91

55

16.00

224/0.30

1.00

9.60

1.21

75

25.00

350/0.30

1.20

10.50

0.78

100

35.00

490/0.30

1.40

12.50

0.554

125

50.00

703/0.30

1.40

13.50

0.386

165

70.00

988/0.30

1.40

15.50

0.272

240

95.00

1349/0.30

1.60

18.50

0.206

300

120.00

608/0.50

1.60

20.50

0.161

325

185.00

943/0.50

1.80

25.50

0.106

400

240.00

1223/0.50

2.00

28.00

0.0801

475

300.00

1528/0.50

2.20

31.50

0.0641

550

400.00

2035/0.50

2.40

36.00

0.0486

670

500.00

2553/0.50

2.60

41.00

0.0384

750

Multi-core Round Flexible Cable
Nominal cross section area of conductor Number/ Nominal dia of Strands Nominal insulation thickness Nominal sheath thickness in mm Max. overall diameter in mm Max. conductor resistance at 20°C Current rating

Sqmm

Mm

Mm

2/3/4 Core

2 Core

3 Core

4 Core

Ω/km

Amps

0.50

16/0.20

0.60

0.90

7.20

7.60

8.20

39.00

6

0.75

24/0.20

0.60

0.90

7.80

8.20

8.80

26.00

9

1.00

32/0.20

0.60

0.90

8.00

8.60

9.40

19.50

14

1.50

30/0.25

0.60

0.90

8.60

9.20

10.50

13.30

18

2.50

50/0.25

0.70

1.00

10.50

11.00

12.00

7.98

24

4.00

56/0.30

0.80

1.00

12.00

12.50

14.00

4.95

32

6.00

84/0.30

0.80

1.15

12.60

13.40

15.20

3.30

33

10.00

140/0.30

1.00

1.40

16.00

17.00

18.80

1.91

45

16.00

126/0.40

1.00

1.40

18.80

20.10

22.20

1.21

60

25.00

196/0.40

1.20

2.00

24.00

25.60

28.20

0.78

75

35.00

276/0.40

1.20

2.00

26.30

28.00

31.00

0.554

95

50.00

396/0.40

1.40

2.00

30.90

33.00

36.50

0.386

125

  • All are class 5 conductor
  • HR/FR/FRLS-H/ZHFR insulation or sheath is also available as per customer requirements
