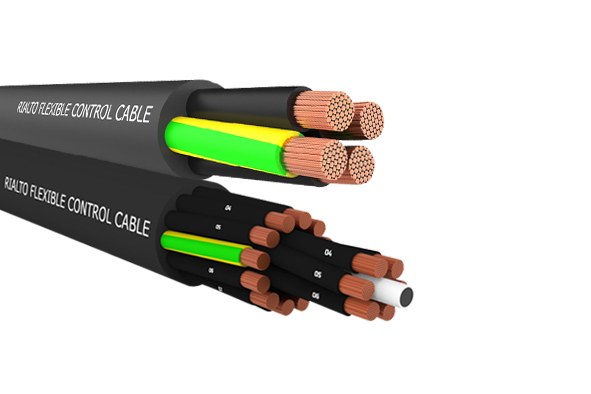

H05VV5-F is a flexible multi-core PVC-insulated and PVC-sheathed cable with numbered cores and a green/yellow earth conductor, specifically designed for use in industrial machinery and equipment, such as CNC machines, conveyor systems, and control panels. Rated for 300/500V, it is suitable for fixed installations or limited movement under light mechanical stress in dry or damp indoor environments. The cable’s flexibility and clear core identification make it ideal for automated systems requiring organized and reliable wiring. Manufactured according to IEC 60227 standards, H05VV5-F ensures safe and efficient operation in complex electrical setups.
Download PDF3 Core Round Cable – For standard submersible pump connections
4 Core Round Cable – For pumps requiring additional earthing or neutral connection for extra safety
| CABLE STRUCTURE | |
|---|---|
| Generally Conforms to, | EN 50525-2-51 / VDE 0285-525-2-51 |
| Conductor: | Fine stranded bare copper (Class 5 as per IEC 60228) |
| Insulation: | PVC (Polyvinyl Chloride), Type TI2 |
| Sheathing: | PVC (Polyvinyl Chloride), Type TM2 |
*Any color can be supplied as per the requirement and wish of the buyer.
| TECHNICAL DATA | |
|---|---|
| Operating Temperature: | -5C to +70C (fixed) / 0C to +70C (flexing) |
| Nominal Voltage: | 300/500 V |
| Test Voltage: | 2000 V AC |
| Min. bending radius: | Min. 10 x outer diameter (flexing) |
| Flame propagation: | According to IEC/EN 60332-1-2 |
