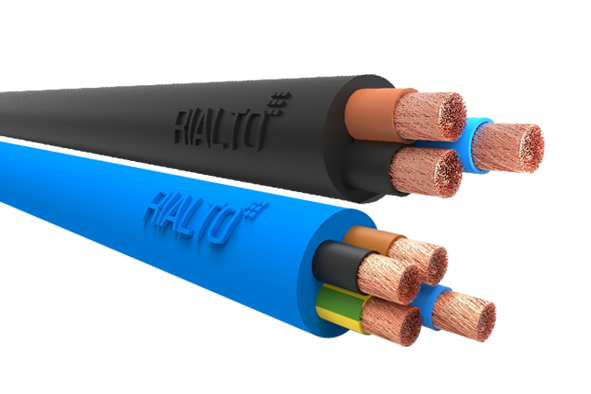

RIALTO H07RN8-F is a European harmonized, heavy-duty rubber cable engineered for permanent submersion in water and operation under high mechanical stress. It features flexible rubber insulation and a durable black neoprene (polychloroprene) outer jacket, offering excellent resistance to ozone, UV, oil, and abrasion.
Available in both 3 Core and 4 Core options, these round cables are suitable for various submersible pump applications where flexibility, durability, and safety are essentia
Download PDFH07RN8-F Cables are flame-retardant, UV-resistant, and suitable for continuous submersion in water—making them the preferred choice for irrigation, dewatering, and industrial pumping applications.
| CABLE STRUCTURE | |
|---|---|
| Generally Conforms to, | BS EN 50525, CENELEC HD 22.1.S2, DIN VDE 0282 PART 810, IEC 245, CEI 20-19 & BS 6007, BS 6899 |
| Copper : | EC flexible copper generally conforms toIEC 60228, DIN VDE 0295,IS 8131 |
| Insulation : | Special Rubber EPR, EPDM core |
| Outer Sheath : | Special Rubber :Black, Blue |
*Any color can be supplied as per the requirement and wish of the buyer.
| TECHNICAL DATA | |
|---|---|
| Operating Temperature: | -40°c to max.+90°C |
| Nominal Voltage: | 450/750 V |
| Test Voltage: | 2.5 KV |
| Min. Bending Radius: | 6 x Cable diameter |
| Flame Propagation: | Flame retardant test as per IEC 60332-1 |
