PVC Armoured Cable

PVC Armoured Cable

Power & Control Cable

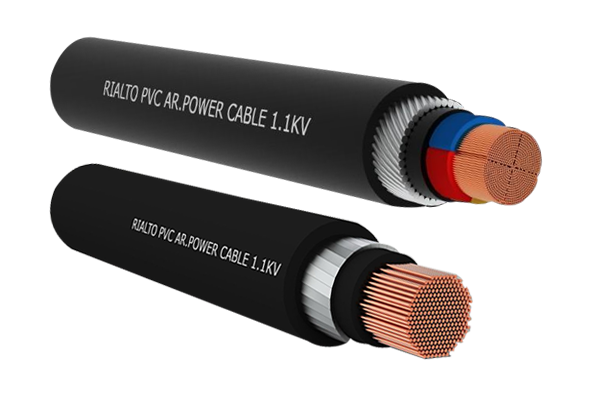

PVC Armoured Cable

PVC Armoured Cable from Rialto Cables is designed for efficient and reliable power distribution in a variety of applications. Manufactured with high-grade PVC (Polyvinyl Chloride) insulation and sheathing, these cables offer excellent protection against moisture, abrasion, and environmental factors. Lightweight and easy to install, Rialto’s PVC Armoured cables are ideal for indoor wiring, control panels, and light industrial use, ensuring consistent performance and long-lasting durability.

Download PDF
Product Range:

Low-voltage power cable with PVC insulation and steel armouring for mechanical protection. Suitable for underground, outdoor, and industrial installations. Offers reliable performance in power distribution where moderate thermal resistance is acceptable. Rated voltage: 1.1kV.

Diagram:
3 Core 4 Core






Single Core
Conductor: Material - Aluminum /Coppe
*Shape : ~AL . Cond :- 6 & 10 sqmm - Solid circular, 16 sqmm & above : Stranded compacted shaped
~Copper. Cond :4 & 6sqmm -solid/ stranded non compacted circular, 10sqmm : Stranded compacted circular,16sqmm & above : Stranded compacted shaped
INSULATION :PVC Type A of IS :5831/ OPTION : HR PVC (Type -C of IS -5831), Color : Black
INNER SHEATH :PVC as per IS :1554PT-1
ARMOURING :Single layer of Aluminium Round wires / Flat Strips
OUTER SHEATH :PVC TYPE ST-1 OF IS : 5831 ‘— OPTIONS : PVC TYPE ST-2 OF IS : 5831/ FR
TYPE/ FRLS TYPE COLOR OF OUTER SHEATH : BLACK.
OPTIONS : any other color as per requirement.
~ Tabulated approx. net wt. of cables is only guidelines for transportation, loading &unloading purpose.

Physical Parameters

SIZE
Cross-
-sectional area ( sqmm)		 Minimum No of Strands in Conductor Nominal Thickness of Insulation) (mm) ARMOURING WITH FLAT STRIP ( AYFaY/ YFaY) ARMOURING WITH ROUND WIRES ( AYWaY/ YWaY
Nominal Thickness of armour (mm) Minimum Thickness of outer sheath (mm) Approx. Overall Diameter (mm) Approx. Net Wt of cable ( Kg/KM) Nominal
Diameter of wire (mm)		 Minimum Thickness of outer sheath (mm) Approx. Overall Diameter (mm) Approx. Net Wt of cable ( Kg/KM)
Al Cu With Al cond AYFaY With Cu Cond. YFaY With Al cond With Cu Cond
AYWaY YWaY
4 — 1/7 1.3 N/A N/A N/A N/A N/A 1.40 1.24 11 150 180
6 1 1/7 1.3 N/A N/A N/A N/A N/A 1.40 1.24 12 180 210
10 1 6 1.3 N/A N/A N/A N/A N/A 1.40 1.24 13 200 260
16 6 6 1.3 N/A N/A N/A N/A N/A 1.40 1.24 14 250 350
25 6 6 1.5 N/A N/A N/A N/A N/A 1.40 1.24 15 300 450
35 6 6 1.5 N/A N/A N/A N/A N/A 1.40 1.24 16 350 560
50 6 6 1.7 N/A N/A N/A N/A N/A 1.40 1.24 18 450 750
70 12 12 1.7 N/A N/A N/A N/A N/A 1.40 1.40 20 550 980
95 15 15 1.9 0.80 1.40 21 650 1230 1.60 1.40 22 700 1300
120 15 18 1.9 0.80 1.40 23 750 1500 1.60 1.40 24 800 1550
150 15 18 2.1 0.80 1.40 24 900 1830 1.60 1.40 26 950 1880
185 30 30 2.3 0.80 1.40 27 1050 2200 1.60 1.40 29 1100 2250
240 30 34 2.5 0.80 1.40 30 1300 2800 1.60 1.56 32 1400 2900
300 30 34 2.7 0.80 1.56 32 1600 3450 1.60 1.56 33 1650 3500
400 53 53 3.0 0.80 1.56 37 1950 4400 2.00 1.56 39 2100 4580
500 53 53 3.4 0.80 1.56 40 2400 5500 2.00 1.72 42 2700 5800
630 53 53 3.9 0.80 1.72 45 3100 7000 2.00 1.88 48 3300 7200
800 53 53 3.9 0.80 1.88 49 3700 8650 2.00 1.88 52 4000 8950
1000 53 53 3.9 0.80 2.04 55 4600 10800 2.50 2.04 59 4900 11000


Electrical Parameters

SIZE cross-sectional area (Sq MM) Max. Cond. D.C. Resistance at 20°C in Ohm/km Approx. Cond. A.C.
Resistance at 70°C in Ohm/km		 App.Reactance of cable
in at 50HZ ohms/km		 App. Capecitance of cable in microF/KM Normal* Current Rating in Amps Short Circuit Current
Rating for 1Sec.duration in K. Amps
With Aluminium cond. With Copper cond.
Al Cu Al Cu Ground Duct Air Ground Duct Air Al Cu
4 7.41 4.61 8.89 5.53 0.157 0.48 31 30 27 39 38 35 0.304 0.460
6 4.61 3.08 5.53 3.70 0.148 0.56 39 37 35 49 48 44 0.456 0.690
10 3.08 1.83 3.70 2.20 0.138 0.67 51 51 47 65 64 60 0.760 1.150
16 1.91 1.15 2.29 1.38 0.128 0.81 66 65 64 85 83 82 1.220 1.840
25 1.20 0.727 1.44 0.87 0.120 0.87 86 84 84 110 110 110 1.900 2.880
35 0.868 0.524 1.04 0.63 0.114 1.00 100 100 105 130 125 130 2.660 4.030
50 0.641 0.387 0.769 0.464 0.110 1.03 120 115 130 155 150 165 3.800 5.750
70 0.443 0.268 0.532 0.322 0.103 1.21 140 135 155 190 175 205 5.320 8.050
95 0.320 0.193 0.384 0.232 0.101 1.27 175 155 190 220 200 245 7.220 10.90
120 0.253 0.153 0.304 0.184 0.096 1.42 195 170 220 250 220 280 9.120 13.80
150 0.206 0.1240 0.247 0.1488 0.094 1.42 220 190 250 280 245 320 11.400 17.30
185 0.164 0.0991 0.197 0.1189 0.092 1.44 240 210 290 305 260 370 14.100 21.30
240 0.125 0.0754 0.151 0.0912 0.090 1.53 270 225 335 345 285 425 18.200 27.60
300 0.100 0.0601 0.122 0.0733 0.088 1.56 295 245 380 375 310 475 22.800 34.50
400 0.0778 0.0470 0.0961 0.0580 0.088 1.59 325 275 435 400 335 550 30.400 46.00
500 0.0605 0.0366 0.076 0.0459 0.087 1.67 345 295 480 425 355 590 38.000 57.50
630 0.0469 0.0283 0.0610 0.0368 0.086 1.67 390 320 550 470 375 660 47.880 72.50
800 0.0367 0.0221 0.0503 0.0303 0.083 1.75 450 380 610 530 423 725 60.800 92.00
1000 0.0291 0.0176 0.0422 0.0255 0.082 1.94 500 414 680 590 471 870 76.000 115.00


Color Coding: AS IS 1554 ( Indian Standard )

Single Core 2 Core 3 Core 4 Core 5 Core
Red or Black Red, Black Red, Yellow, Blue Red, Yellow, Blue, Black Red, Yellow, Blue, Black, Grey

Color coding: AS IEC 60502 Part-1, B.S. 6346

 Single Core 2 Core 3 Core 4 Core 5 Core
Black or Yellow/Green Blue and Brown or Yellow-Green and Black Brown, Black, Grey or Yellow/Green, Blue, Brown Blue, Brown, Black, Grey or Yellow/Green, Brown, Black, Grey Blue, Brown, Black, Grey, Black or Yellow/Green, Blue, Brown, Black, Grey




Two Core
Conductor: Material - Aluminium /Copper
*Shape : ~AL . Cond :- 6 & 10 sqmm - Solid circular, 16 sqmm & above : Stranded compacted shaped
~Copper. Cond :4 & 6sqmm -solid/ stranded non compacted circular, 10sqmm : Stranded compacted circular,16sqmm & above : Stranded compacted shaped
INSULATION :PVC Type A of IS :5831/ OPTION : HR PVC (Type -C of IS -5831), Color : Black
INNER SHEATH :PVC as per IS :1554PT-1
ARMOURING :Single layer of Aluminium Round wires / Flat Strips
OUTER SHEATH :PVC TYPE ST-1 OF IS : 5831 ‘— OPTIONS : PVC TYPE ST-2 OF IS : 5831/ FR
TYPE/ FRLS TYPE COLOR OF OUTER SHEATH :BLACK.
OPTIONS :any other color as per requirement.
~ Tabulated approx. net wt. of cables is only guidelines for transportation, loading &unloading purpose.

Physical Parameters

SIZE
Cross- -sectional area (sqmm		 Minimum No of Strands in Conductor Nominal Thickness of Insulation) (mm) Minimum Thickness of
inner Sh. (mm)		 Minimum Thickness of
inner Sh. (mm)		 ARMOURING WITH ROUND WIRES ( AYWY/ YWY)
Nominal Thickness of armour (mm) Minimum Thickness of outer sheath (mm) Approx. Overall Diameter (mm) Approx. Net Wt of cable (Kg/KM) Nominal
Diameter of armour (mm)		 Minimum Thickness of outer sheath (mm) Approx.
Overall Diameter		 Approx. Net Wt of cable ( Kg/KM)
With Al cond With Cu Cond With Al cond With Cu Cond
Al Cu AYFY YFY (mm) AYWY YWY
4 — 1/7 1.0 0.30 N/A N/A N/A N/A N/A 1.40 1.24 18 600 650
6 1 1/7 1.0 0.30 N/A N/A N/A N/A N/A 1.40 1.24 19 660 730
10 1 6 1.0 0.30 N/A N/A N/A N/A N/A 1.40 1.24 20 750 870
16 6 6 1.0 0.30 0.80 1.40 18 580 780 1.60 1.40 20 750 950
25 6 6 1.2 0.30 0.80 1.40 20 700 1000 1.60 1.40 22 900 1200
35 6 6 1.2 0.30 0.80 1.40 22 800 1230 1.60 1.40 23 1030 1450
50 6 6 1.4 0.30 0.80 1.40 25 1000 1620 1.60 1.56 26 1300 1900
70 12 12 1.4 0.30 0.80 1.56 27 1200 2050 1.60 1.56 29 1500 2350
95 15 15 1.6 0.40 0.80 1.56 30 1550 2720 2.00 1.56 33 2050 3200
120 15 18 1.6 0.40 0.80 1.56 32 1800 3290 2.00 1.72 35 2400 3900
150 15 18 1.8 0.40 0.80 1.72 35 2100 3970 2.00 1.72 37 2760 4600
185 30 30 2.0 0.50 0.80 1.88 38 2500 4800 2.00 1.88 41 3200 5500
240 30 34 2.2 0.50 0.80 2.04 43 3100 6080 2.50 2.04 47 4200 7200
300 30 34 2.4 0.60 0.80 2.20 48 3700 7400 2.50 2.20 50 5000 8700
400 53 53 2.6 0.70 0.80 2.36 53 4500 9450 3.15 2.52 58 6600 11500
500 53 53 3.0 0.70 0.80 2.68 56 5600 11800 3.15 2.84 64 8000 14000
630 53 53 3.4 0.70 0.80 2.84 66 6900 14700 4.00 3.00 72 11000 18800


Electrical Parameters

SIZE cross-sectional area (Sq MM) Max. Cond. D.C. Resistance at 20°C in Ohm/k Approx. Cond. A.C.
Resistance at 70°C in Ohm/km		 App.Reactance of cable at 50HZ in ohms/km App. Capecitance of cable in microF/KM Normal* Current Rating in Amps Short Circuit Current Rating for 1Sec. duration in K. Amps
With Aluminium cond. With Copper cond.
Al Cu Al Cu Ground Duct Air Ground Duct Air Al Cu
4 --- 4.61 --- 5.53 0.098 0.23 32 27 27 41 35 35 0.304 0.460
6 4.61 3.08 5.53 3.70 0.096 0.28 40 34 35 50 44 45 0.456 0.690
10 3.08 1.83 3.70 2.20 0.091 0.34 55 45 47 70 58 60 0.760 1.150
16 1.91 1.15 2.29 1.38 0.085 0.40 70 58 59 90 75 78 1.220 1.840
25 1.20 0.727 1.44 0.87 0.083 0.42 90 76 78 115 97 105 1.90 2.880
35 0.868 0.524 1.04 0.63 0.082 0.48 110 92 99 140 120 125 2.66 4.030
50 0.641 0.387 0.769 0.464 0.082 0.49 135 115 125 165 145 155 3.80 5.750
70 0.443 0.268 0.532 0.322 0.076 0.56 160 140 150 205 180 195 5.32 8.050
95 0.320 0.193 0.384 0.232 0.076 0.58 190 170 185 240 215 230 7.22 10.90
120 0.253 0.153 0.304 0.184 0.075 0.63 210 190 210 275 235 265 9.12 13.80
150 0.206 0.1240 0.247 0.1488 0.074 0.63 240 210 240 310 270 305 11.40 17.30
185 0.164 0.0991 0.197 0.1189 0.074 0.64 275 240 275 350 300 350 14.10 21.30
240 0.125 0.0754 0.151 0.0912 0.073 0.67 320 275 325 405 345 410 18.20 27.60
300 0.100 0.0601 0.122 0.0733 0.073 0.68 355 305 365 450 385 465 22.80 34.50
400 0.0778 0.0470 0.0961 0.0580 0.072 0.70 385 345 420 490 485 530 30.40 46.00
500 0.0605 0.0366 0.0759 0.0459 0.072 0.70 425 380 475 540 460 605 38.00 57.50
630 0.0469 0.0283 0.0610 0.0368 0.072 0.70 465 415 540 640 550 785 47.90 72.50

Color Coding: AS IS 1554 ( Indian Standard )

Single Core 2 Core 3 Core 4 Core 5 Core
Red or Black Red, Black Red, Yellow, Blue Red, Yellow, Blue, Black Red, Yellow, Blue, Black, Grey

Color coding: AS IEC 60502 Part-1, B.S. 6346

 Single Core 2 Core 3 Core 4 Core 5 Core
Black or Yellow/Green Blue and Brown or Yellow-Green and Black Brown, Black, Grey or Yellow/Green, Blue, Brown Blue, Brown, Black, Grey or Yellow/Green, Brown, Black, Grey Blue, Brown, Black, Grey, Black or Yellow/Green, Blue, Brown, Black, Grey




Three Core
Conductor: Material - Aluminum /Copper
*Shape : ~AL. Cond: - 6 & 10SQMM -Solid circular, 16sqmm & above: Stranded compacted shaped
~Copper. Cond :4&6 sq.mm-solid/ stranded non compacted circular, 10sqmm: Stranded compacted circular, 16sqmm & above: Stranded compacted shaped
INSULATION :PVC Type A of IS: 5831/ OPTION: HR PVC (Type -C of IS -5831), Color: Red, Yellow & Black
INNER SHEATH :PVC as per IS :1554PT-1
ARMOURING :Single layer of Galvanized steel Round wires / Flat Strips
OUTER SHEATH :PVC TYPE ST-1 OF IS: 5831 ‘— OPTIONS: PVC TYPE ST-2 OF IS: 5831/ FR
TYPE/ FRLS TYPE COLOR OF OUTER SHEATH : BLACK.
OPTIONS: any other color as per requirement.
~ Tabulated approx. net wt. of cables is only guidelines for transportation, loading &unloading purpose.

Physical Parameters

SIZE
Cross-
-sectional area (sq mm		 Minimum No of Strands in Conductor Nominal Thickness of Insulation) (mm Minimum Thickness of inner Sh. (mm) ARMOURING WITH FLAT STRIP ( AYFY/ YFY) ARMOURING WITH ROUND WIRES ( AYWY/ YWY)
Nominal Thick. of armour strip (mm Thick. of outer sheath (mm) Approx. Overall Diameter (mm) Approx. Net Wt of cable ( Kg/KM) Nominal
Diameter
d.   of wire (mm)		 Minimum Thickness of outer sheath (mm) Approx. Overall Diameter (mm) Approx. Net Wt of cable ( Kg/KM)
Al Cu With Al cond AYFY With Cu Con YFY With Al cond AYWY With Cu Cond. YWY
4 -- 1/7 1.0 0.30 N/A N/A N/A N/A N/A 1.40 1.24 18 600 650
6 1 1/7 1.0 0.30 N/A N/A N/A N/A N/A 1.40 1.24 19 700 810
10 1 6 1.0 0.30 N/A N/A N/A N/A N/A 1.40 1.40 21 900 1100
16 6 6 1.0 0.30 0.80 1.40 20 700 1000 1.60 1.40 21 950 1250
25 6 6 1.2 0.30 080. 1.40 23 900 1350 1.60 1.40 23 1100 1550
35 6 6 1.2 0.30 0.80 1.40 24 1000 1650 1.60 1.40 26 1300 1950
50 6 6 1.4 0.30 0.80 1.56 27 1300 2230 1.60 1.56 29 1600 2530
70 12 12 1.4 0.40 0.80 1.56 31 1600 2900 2.00 1.56 33 2150 3450
95 15 15 1.6 040 0.80 1.56 35 2000 3750 2.00 1.72 37 2650 4400
120 15 18 1.6 0.40 0.80 1.72 37 2400 4630 2.00 1.72 39 3000 5200
150 15 18 1.8 0.50 0.80 1.88 41 2800 5600 2.00 1.88 43 3550 6300
185 30 30 2.0 0.50 0.80 1.88 46 3400 6840 2.50 2.04 49 4600 8000
240 30 34 2.2 0.60 0.80 2.20 51 4200 8650 2.50 2.20 54 5600 10000
300 30 34 2.4 0.60 0.80 2.36 56 5050 10630 2.50 2.36 59 6600 12000
400 53 53 2.6 0.70 0.80 2.52 63 6300 13740 3.15 2.68 68 8700 16000
500 53 53 3.0 0.70 0.80 2.84 70 7800 17100 3.15 3.00 75 11000 20000
630 53 53 3.4 0.70 0.80 3.00 78 9700 21418 4.00 3.00 84 14000 25500


Electrical Parameters

SIZE cross-sectional area (Sq MM) Max. Cond. D.C. Resistance at 20°C in Ohm/km   Approx. Cond. A.C.
Resistance at 70°C in Ohm/km		 App.Reactance at 50HZ in ohms/km App. Capacitance of cable in microF/KM Normal* Current Rating in Amps Short Circuit Current Rating for 1Sec.duration in K. Amps
With Aluminium cond. With Copper cond. Al Cu
Al CU Al Cu Ground Duct Air Ground Duct Air
4 — 4.61 — 5.53 0.098 0.23 28 23 23 36 30 30 0.304 0.460
6 4.61 3.08 5.53 3.70 0.096 0.28 35 30 30 45 38 39 0.456 0.690
10 3.08 1.83 3.70 2.20 0.091 0.34 46 39 40 60 50 52 0.760 1.150
16 1.91 1.15 2.29 1.38 0.085 0.40 60 50 51 77 64 66 1.220 1.840
25 1.20 0.727 1.44 0.87 0.083 0.42 76 63 70 99 81 90 1.900 2.880
35 0.868 0.524 1.04 0.63 0.082 0.48 92 77 86 120 99 110 2.660 4.030
50 0.641 0.387 0.769 0.464 0.082 0.49 110 95 105 145 125 135 3.800 5.750
70 0.443 0.268 0.532 0.322 0.076 0.56 135 115 130 175 150 165 5.320 8.050
95 0.320 0.193 0.384 0.232 0.076 0.58 165 140 155 210 175 200 7.220 10.900
120 0.253 0.153 0.304 0.184 0.075 0.63 185 155 180 240 195 230 9.120 13.800
150 0.206 0.1240 0.247 0.1488 0.074 0.63 210 175 205 270 225 265 11.400 17.300
185 0.164 0.0991 0.197 0.1189 0.074 0.64 235 200 240 300 255 305 14.100 21.300
240 0.125 0.0754 0.151 0.0912 0.073 0.67 275 235 280 345 295 355 18.200 27.600
300 0.100 0.0601 0.122 0.0733 0.073 0.68 305 260 315 385 335 400 22.800 34.500
400 0.0778 0.0470 0.0961 0.0580 0.072 0.70 335 290 375 425 360 435 30.400 46.000
500 0.0605 0.0366 0.0759 0.0459 0.072 0.70 370 320 425 470 390 520 38.000 57.500
630 0.0469 0.0283 0.0610 0.0368 0.072 0.70 405 350 480 555 470 675 47.900 72.500

Color Coding: AS IS 1554 ( Indian Standard )

Single Core 2 Core 3 Core 4 Core 5 Core
Red or Black Red, Black Red, Yellow, Blue Red, Yellow, Blue, Black Red, Yellow, Blue, Black, Grey

Color coding: AS IEC 60502 Part-1, B.S. 6346

 Single Core 2 Core 3 Core 4 Core 5 Core
Black or Yellow/Green Blue and Brown or Yellow-Green and Black Brown, Black, Grey or Yellow/Green, Blue, Brown Blue, Brown, Black, Grey or Yellow/Green, Brown, Black, Grey Blue, Brown, Black, Grey, Black or Yellow/Green, Blue, Brown, Black, Grey




Three & Half Cores
Conductor: Material - Aluminium /Copper
*Shape : ~AL . Cond :- 6 & 10SQMM -Solid circular, 16sqmm & above : Stranded compacted shaped
~Copper. Cond :4 & 6sqmm -solid/ stranded non compacted circular, 10sqmm : Stranded compacted circular,16sqmm & above : Stranded compacted shaped
INSULATION :PVC Type A of IS :5831/ OPTION : HR PVC ( Type -C of IS -5831), Color : Red, Yellow, Blue
INNER SHEATH :PVC as per IS :1554PT-1
ARMOURING :Single layer of Galvanized steel Round wires / Flat Strips
OUTER SHEATH :PVC TYPE ST-1 OF IS : 5831 ‘— OPTIONS : PVC TYPE ST-2 OF IS : 5831/ FR
TYPE/ FRLS TYPE COLOR OF OUTER SHEATH : BLACK .
OPTIONS: any other color as per requirement.
~ Tabulated approx. net wt. of cables is only guidelines for transportation, loading &unloading purpose.

Physical Parameters

SIZE
Cross- -sectional area (sqmm		 Minimum Nos of Strands in Conductor Nominal Thickness of Insulation) (mm) Phase/Neutral Minimum Thickness of inner Sh. (mm ARMOURING WITH FLAT STRIP ( AYFY/ YFY ARMOURING WITH ROUND WIRES ( AYWY/ YWY)
Nominal Thickness Strip (mm) Minimum
Thickness of outer sheath (mm) 		Approx. Overall Diameter (mm Approx. Net Wt of cable ( Kg/KM) Nominal
Diameter
d.   of wire (mm)		 Minimum Thickness of outer sheath (mm) Approx. Overall Diameter (mm) Approx. Net Wt of cable ( Kg/KM)
With Al cond With Cu Con
With Al cond With Cu Cond
Phase/Neutra AYFY YFY AYWY YWY
3X25+16 6/6 6/6 1.20/1.00 0.30 0.80 1.40 24 1000 1550 1.60 1.40 26 1300 1850
3X35+16 6/6 6/6 1.20/1.00 0.30 0.80 1.40 26 1200 1950 1.60 1.40 28 1450 2150
3X50+25 6/6 6/6 1.40/1.20 0.30 0.80 1.56 30 1500 2600 1.60 1.56 31 1800 2800
3X70+35 12/6 12/6 1.40/1.20 0.40 0.80 1.56 34 1800 3300 2.00 1.56 36 2400 3800
3X95+50 15/6 15/6 1.60/1.40 0.40 0.80 1.56 37 2300 4350 2.00 1.72 39 3000 5000
3X120+70 15/12 18/12 1.60/1.40 0.50 0.80 1.72 41 2800 5450 2.00 1.88 43 3500 6100
3X150+70 15/12 18/12 1.80/1.40 0.50 0.8 1.88 45 3200 6400 2.00 1.88 47 4000 7200
3X185+95 30/15 30/15 2.00/1.60 0.50 0.80 2.04 49 3900 7900 2.50 2.04 53 5200 9200
3X240+120 30/15 34/18 2.20/1.60 0.60 0.80 2.20 55 4800 10000 2.50 2.30 58 6400 11500
3X300+150 30/15 34/18 2.40/1.80 0.60 0.80 2.36 61 5800 12300 3.15 2.52 65 8200 14500
3X400+185 53/30 53/30 2.60/2.00 0.70 0.80 2.68 69 7300 15800 3.15 2.63 75 9900 18400
3X500+240 53/30 53/34 3.00/2.20 0.70 0.80 2.84 77 9000 19500 4.00 3.00 84 13500 24000
3X630+300 53/30 53/34 3.40/2.40 0.70 0.80 3.00 87 11500 25000 4.00 3.00 92 16000 28500


Electrical Parameters

SIZE cross-sectional area (Sq MM) Max. Cond. D.C.
Resistance at 20°C in Ohm/km		 Approx. Cond. A.C.
Resistance at 70°C in Ohm/km		 App..Reactance
at 50HZ in ohms/km		 App. Capecitance
of cable in microF/KM		 Normal* Current Rating in Amps Short Circuit Current
Rating for 1Sec.duration in K. Amps
With Aluminium cond. With Copper cond.
Al Cu Al Cu Ground Duct Air Ground Duct Air Al Cu
3X25+16 1.20 0.727 1.44 0.87 0.083 0.42 76 63 70 99 81 90 1.90 2.88
3X35+16 0.868 0.524 1.04 0.63 0.082 0.48 92 77 86 120 99 110 2.66 4.03
3X50+25 0.641 0.387 0.769 0.464 0.082 0.49 110 95 105 145 125 135 3.80 5.75
3X70+35 0.443 0.268 0.532 0.322 0.076 0.56 135 115 130 175 150 165 5.32 8.05
3X95+50 0.320 0.193 0.384 0.232 0.076 0.58 165 140 155 210 175 200 7.22 10.90
3X120+70 0.253 0.153 0.304 0.184 0.075 0.63 185 155 180 240 195 230 9.12 13.80
3X150+70 0.206 0.1240 0.247 0.1488 0.074 0.63 210 175 205 270 225 265 11.40 17.30
3X185+95 0.164 0.0991 0.197 0.1189 0.074 0.64 235 200 240 300 255 305 14.10 21.30
3X240+120 0.125 0.0754 0.151 0.0912 0.073 0.67 275 235 280 345 295 355 18.20 27.60
3X300+150 0.100 0.0601 0.122 0.0733 0.073 0.68 305 260 315 385 335 400 22.80 34.50
3X400+185 0.0778 0.0470 0.0961 0.0580 0.072 0.70 335 290 375 425 360 435 30.40 46.00
3X500+240 0.0605 0.0366 0.0759 0.0459 0.072 0.70 370 320 425 470 390 520 38.00 57.50
3X630+300 0.0469 0.0283 0.0610 0.0368 0.072 0.70 405 350 480 555 470 675 47.90 72.50

Color Coding: AS IS 1554 ( Indian Standard )

Single Core 2 Core 3 Core 4 Core 5 Core
Red or Black Red, Black Red, Yellow, Blue Red, Yellow, Blue, Black Red, Yellow, Blue, Black, Grey

Color coding: AS IEC 60502 Part-1, B.S. 6346

 Single Core 2 Core 3 Core 4 Core 5 Core
Black or Yellow/Green Blue and Brown or Yellow-Green and Black Brown, Black, Grey or Yellow/Green, Blue, Brown Blue, Brown, Black, Grey or Yellow/Green, Brown, Black, Grey Blue, Brown, Black, Grey, Black or Yellow/Green, Blue, Brown, Black, Grey




Four Cores
Conductor: Material - Aluminium /Copper
*Shape : ~AL . Cond :- 6 & 10SQMM -Solid circular, 16sqmm & above : Stranded compacted shaped
~Copper. Cond :4 & 6sqmm -solid/ stranded non compacted circular, 10sqmm : Stranded ;compacted circular,16sqmm & above : Stranded compacted shaped
INSULATION : PVC Type A of IS :5831/ OPTION : HR PVC ( Type -C of IS -5831), Color : Red, Yellow, Blue
INNER SHEATH :PVC as per IS :1554PT-1
ARMOURING :Single layer of Galvanized steel Round wires / Flat Strips
OUTER SHEATH : PVC TYPE ST-1 OF IS : 5831 ‘— OPTIONS : PVC TYPE ST-2 OF IS : 5831/ FR
TYPE/ FRLS TYPE COLOR OF OUTER SHEATH :BLACK
OPTIONS : any other color as per requirement.
~ Tabulated approx. net wt. of cables is only guidelines for transportation, loading &unloading purpose.

Physical Parameters

SIZE Cross-
-sectional area ( sqmm)		 Minimum No of Strands in Conductor Nominal Thickness of Insulation) (mm) Minimum Thickness of inner Sh. (mm) ARMOURING WITH FLAT STRIP ( AYFY/ YFY) ARMOURING WITH ROUND WIRES ( AYWY/ YWY)
Nominal Thickness of armour (mm) Minimum Thickness of outer sheath (mm) Approx. Overall Diameter (mm) Approx. Net Wt of cable (Kg/KM) Nominal
iameter
f armour (mm)		 Minimum Thickness of outer sheath (mm) Approx.
Overall Diameter		 Approx. Net Wt of cable ( Kg/KM)
With Al cond With Cu Cond.o With Al cond With Cu Cond
Al Cu AYFY YFY (mm) AYWY YWY
4 — 1/7 1.0 0.30 N/A N/A N/A N/A N/A 1.40 1.24 18 650 800
6 1 1/7 1.0 0.30 N/A N/A N/A N/A N/A 1.40 1.24 21 880 1030
10 1 6 1.0 0.30 0.8 1.40 21 750 998 1.60 1.40 22 900 1150
16 6 6 1.0 0.30 0.8 1.40 22 860 1260 1.60 1.40 23 1120 1520
25 6 6 1.2 0.30 0.8 1.40 25 1100 1720 1.60 1.40 27 1400 2020
35 6 6 1.2 0.30 0.8 1.40 28 1300 2170 1.60 1.56 30 1600 2470
50 6 6 1.4 0.40 0.8 1.56 32 1600 2850 2.00 1.56 34 2200 3445
70 12 12 1.4 0.40 0.8 1.56 35 2000 3740 2.00 1.56 37 2650 4390
95 15 15 1.6 0.40 0.8 1.72 40 2600 5000 2.00 1.72 42 3300 5660
120 15 18 1.6 0.50 0.8 1.88 43 3050 6030 2.00 1.88 47 3850 6830
150 15 18 1.8 0.50 0.8 1.88 48 3600 7325 2.5 2.04 51 4850 8575
185 30 30 2.0 0.60 0.8 2.04 52 4300 8890 2.5 2.20 56 5800 10390
240 30 34 2.2 0.60 0.8 2.36 59 5400 11355 2.50 2.36 62 7000 12960
300 30 34 2.4 0.70 0.8 2.52 67 6600 14050 3.15 2.68 70 9200 16650
400 53 53 2.6 0.70 0.8 2.84 74 8200 18128 3.15 2.84 76 11000 20930
500 53 53 3.0 0.70 0.8 3.00 80 10500 22900 4.00 3.00 86 15000 27400
630 53 53 3.4 0.70 0.8 3.00 90 13000 28625 4.00 3.00 96 18000 33630


Electrical Parameters

SIZE cross-sectional area (Sq MM) Max. Cond. D.C. Resistance at 20°C in Ohm/km Approx. Cond. A.C.
Resistance at 70°C in Ohm/km		 App. Reactance at 50HZ in ohms/km App. Capecitance of cable in microF/KM Normal* Current Rating in Amps Short Circuit Current Rating for 1Sec.duration in K. Amps
With Aluminium cond. With Copper cond.
Al Cu Al Cu Ground Duct Air Ground Duct Air
4 - 4.61 - 5.53 0.098        0.23         28 23 23 36 30 30 0.304 0.460
6 4.61 3.08 5.53 3.70 0.096 0.28 35 30 30 45 38 39 0.456 0.690
10 3.08 1.83 3.70 2.20 0.091 0.34 46 39 40 60 50 52 0.760 1.150
16 1.91 1.15 2.29 1.38 0.085 0.40 60 50 51 77 64 66 1.220 1.840
25 1.20 0.727 1.44 0.87 0.083 0.42 76 63 70 99 81 90 1.900 2.880
35 0.868 0.524 1.04 0.63 0.082 0.48 92 77 86 120 99 110 2.660 4.030
50 0.641 0.387 0.769 0.464 0.082 0.49 110 95 105 145 125 135 3.800 5.750
70 0.443 0.268 0.532 0.322 0.076 0.56 135 115 130 175 150 165 5.320 8.050
95 0.320 0.193 0.384 0.232 0.076 0.58 165 140 155 210 175 200 7.220 10.90
120 0.253 0.153 0.304 0.184 0.075 0.63 185 155 180 240 195 230 9.120 13.80
150 0.206 0.1240 0.247 0.1488 0.074 0.63 210 175 205 270 225 265 11.400 17.300
185 0.164 0.0991 0.197 0.1189 0.074 0.64 235 200 240 300 255 305 14.100 21.280
240 0.125 0.0754 0.151 0.0912 0.073 0.67 275 235 280 345 295 355 18.200 27.600
300 0.100 0.0601 0.122 0.0733 0.073 0.68 305 260 315 385 335 400 22.800 34.500
400 0.0778 0.0470 0.0961 0.0580 0.072 0.70 335 290 375 425 360 435 30.400 46.000
500 0.0605 0.0366 0.0759 0.0459 0.072 0.70 370 320 425 470 390 520 38.000 57.500
630 0.0469 0.0283 0.0610 0.0368 0.072 0.70 405 350 480 555 470 675 47.900 72.550

Color Coding: AS IS 1554 ( Indian Standard )

Single Core 2 Core 3 Core 4 Core 5 Core
Red or Black Red, Black Red, Yellow, Blue Red, Yellow, Blue, Black Red, Yellow, Blue, Black, Grey

Color coding: AS IEC 60502 Part-1, B.S. 6346

 Single Core 2 Core 3 Core 4 Core 5 Core
Black or Yellow/Green Blue and Brown or Yellow-Green and Black Brown, Black, Grey or Yellow/Green, Blue, Brown Blue, Brown, Black, Grey or Yellow/Green, Brown, Black, Grey Blue, Brown, Black, Grey, Black or Yellow/Green, Blue, Brown, Black, Grey


CE =The Product is confirmed with the EC to the Low Voltage Directive 73/23/EEC
