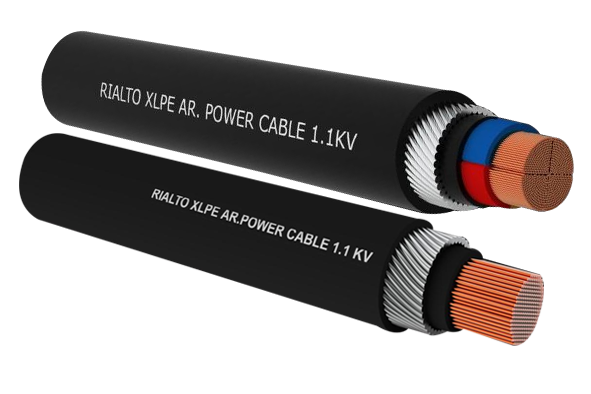

XLPE Armoured Cable

XLPE Armoured Cable

Power & Control Cable

XLPE Armoured Cable

XLPE Armoured Cable from Rialto Cables is designed for efficient and reliable power distribution in a variety of applications. Manufactured with high-grade PVC (Polyvinyl Chloride) insulation and sheathing, these cables offer excellent protection against moisture, abrasion, and environmental factors. Lightweight and easy to install, Rialto’s PVC unarmoured cables are ideal for indoor wiring, control panels, and light industrial use, ensuring consistent performance and long-lasting durability.

Download PDF
Product Range:

Durable low-voltage power cable designed for industrial and utility applications. Features XLPE insulation for high thermal resistance and steel armouring for mechanical protection. Suitable for direct burial, underground, or outdoor installations in harsh environments. Rated voltage: 1.1kV.

Diagram:
3 Core 4 Core




Single Core
Conductor: Material - Aluminum / Copper
*Shape : ~AL . Cond :- 6 & 10SQMM -Solid circular, 16 sqmm & above : Stranded compacted shaped circular
~Copper. Cond :4 & 6sqmm -solid/ stranded non compacted circular , 10sqmm : Stranded compacted circular
INSULATION : Cross linked Polyethylene (XLPE) (Natural color)
ARMOURING :Single layer of Aluminium Round wires / Flat Strips
OUTER SHEATH : PVC TYPE ST-2 OF IS : 5831 ‘— OPTIONS : PVC TYPE
COLOR OF OUTER SHEATH : BLACK . OPTIONS : any other color as per requirement
~ Tabulated approx. net wt. of cables are only guidelines for transportation, loading &unloading purpose

Physical Parameters

SIZE
Cross-
-sectional area ( sqmm)		 Minimum No of Strands in Conductor Nominal Thickness of Insulation) (mm) ARMOURING WITH FLAT STRIP ( A2XFaY/2XFaY) ARMOURING WITH ROUND WIRES ( A2XWaY/ 2XWaY)
Nominal Thickness Strip Minimum Thickness of outer sheath (mm) Approx. Overall Diameter (mm Approx. Net Wt
of cable ( Kg/KM) With Al cond  With Cu Cond		 Nominal
Diameter of wire (mm)		 Minimum Thickness of outer sheath (mm) Approx. Overall Diameter (mm Approx. Net Wt
of cable ( Kg/KM)
With Al cond   With Cu Cond.
Al Cu A2XFaY 2XFaY A2XWaY  2XWaY
4 — 1/7 1.0 N/A N/A N/A N/A N/A 1.40 1.24 10 90 130
6 1 1/7 1.0 N/A N/A N/A N/A N/A 1.40 1.24 11 130 170
10 1 6 1.0 N/A N/A N/A N/A N/A 1.40 1.24 12 160 222
16 6 6 1.0 N/A N/A N/A N/A N/A 1.40 1.24 13 200 300
25 6 6 1.2 N/A N/A N/A N/A N/A 1.40 1.24 14 300 455
35 6 6 1.2 N/A N/A N/A N/A N/A 1.40 1.24 15 350 567
50 6 6 1.3 N/A N/A N/A N/A N/A 1.40 1.24 17 420 730
70 12 12 1.4 N/A N/A N/A N/A N/A 1.40 1.24 19 520 954
95 15 15 1.4 0.80 1.40 21 600 1195 1.60 1.40 22 650 1235
120 15 18 1.5 0.80 1.40 23 700 1450 1.60 1.40 24 750 1494
150 15 18 1.7 0.80 1.40 24 800 1730 1.60 1.40 25 850 1780
185 30 30 1.9 0.80 1.40 26 950 2100 1.60 1.40 28 1000 2147
240 30 34 2.0 0.80 1.40 30 1200 2690 1.60 1.40 30 1250 2738
300 30 34 2.1 0.80 1.56 32 1400 3270 1.60 1.56 33 1500 3360
400 53 53 2.4 0.80 1.56 36 1750 4230 2.00 1.56 38 1900 4380
500 53 53 2.6 0.80 1.56 39 2150 5250 2.00 1.56 41 2350 5450
630 53 53 2.8 0.80 1.72 44 2700 6610 2.00 1.72 46 2900 6806
800 53 53 3.1 0.80 1.72 48 3350 8320 2.00 1.88 51 3600 8560
1000 53 53 3.3 0.80 1.88 54 4100 10300 2.50 2.04 56 4600 10800


Electrical Parameters

SIZE cross-sectional area (Sq MM) Max. Cond. D.C. Resistance at 20°C in Ohm/km Approx. Cond. A.C.
Resistance at 90°C in Ohm/km		 App. Reactance of cable at 50HZ in ohms/km App. Capecitance of cable in microF/KM Normal* Current Rating in Amps   Short Circuit Current
Rating for 1Sec.duration in K. Amps
Normal* Current Rating in Amps With Copper cond. Al Cu
Al Cu Al Cu Ground Duct Air Ground Duct Air
4 — 4.61 — 5.90 0.152 0.22 — — — 48 47 45 0.376 0.572
6 4.61 3.08 5.90 3.94 0.144 0.26 45 45 40 60 59 57 0.56 0.858
10 3.08 1.83 3.94 2.34 0.133 0.31 59 62 53 80 78 77 0.94 1.43
16 1.91 1.15 2.44 1.47 0.122 0.40 76 80 73 104 102 106 1.50 2.29
25 1.20 0.727 1.54 0.931 0.116 0.40 99 90 115 130 115 145 2.35 3.58
35 0.868 0.524 1.11 0.671 0.110 0.47 117 110 140 155 140 175 3.29 5.01
50 0.641 0.387 0.820 0.495 0.103 0.50 138 125 170 185 165 215 4.70 7.15
70 0.443 0.268 0.567 0.343 0.099 0.55 168 155 210 225 200 270 6.58 10.01
95 0.320 0.193 0.411 0.248 0.097 0.64 204 185 255 265 235 330 8.93 13.59
120 0.253 0.153 0.325 0.197 0.093 0.67 230 210 300 300 265 380 11.28 17.16
150 0.206 0.1240 0.265 0.159 0.091 0.67 265 230 342 335 300 430 14.10 21.45
185 0.164 0.0991 0.211 0.127 0.090 0.67 295 260 385 380 335 495 17.39 26.46
240 0.125 0.0754 0.162 0.0976 0.086 0.72 340 300 450 435 385 590 22.56 34.32
300 0.100 0.0601 0.130 0.0778 0.085 0.75 390 335 519 490 430 670 28.20 42.90
400 0.0778 0.0470 0.1023 0.0618 0.085 0.75 450 380 605 550 480 780 37.60 57.20
500 0.0605 0.0366 0.0808 0.0489 0.083 0.77 500 430 700 610 530 900 47.00 71.50
630 0.0469 0.0283 0.0648 0.0391 0.082 0.81 555 485 809 680 590 1020 59.22 90.09
800 0.0367 0.0221 0.0530 0.0319 0.081 0.88 625 530 935 740 630 1140 75.20 114.40
1000 0.0291 0.0176 0.0444 0.0268 0.081 0.88 690 570 1065 780 660 1250 94.00 143.00


Color Coding: AS IS 1554 ( Indian Standard )

Single Core 2 Core 3 Core 4 Core 5 Core
Red or Black Red, Black Red, Yellow, Blue Red, Yellow, Blue, Black Red, Yellow, Blue, Black, Grey

Color coding: AS IEC 60502 Part-1, B.S. 6346

 Single Core 2 Core 3 Core 4 Core 5 Core
Black or Yellow/Green Blue and Brown or Yellow-Green and Black Brown, Black, Grey or Yellow/Green, Blue, Brown Blue, Brown, Black, Grey or Yellow/Green, Brown, Black, Grey Blue, Brown, Black, Grey, Black or Yellow/Green, Blue, Brown, Black, Grey




Two Core
Conductor: Material - Aluminium /Copper
*Shape : ~AL . Cond :- 6 & 10SQMM -Solid circular, 16sqmm & above : Stranded compacted shaped.
~Copper. Cond :4&6 sqmm -solid/ stranded non compacted circular, 10 sqmm : Stranded compacted circular,16sqmm & above : Stranded compacted shaped.
INSULATION :Cross linked Polyethylene (XLPE) (Red & Black color)
INNER SHEATH :PVC as per IS : 7098PT-1
ARMOURING :Single layer of galvanized steel round wires / flat strips
OUTER SHEATH : PVC TYPE ST-2 OF IS : 5831 ‘— OPTIONS : FR TYPE/ FRLS TYPE
COLOR OF OUTER SHEATH :BLACK. OPTIONS : any other color as per requirement.
~ Tabulated approx. net wt. of cables is only guidelines for transportation, loading &unloading purpose.

Physical Parameters

SIZE
Cross-
-sectional area (sqmm)		 Minimum No of Strands in Conductor Nominal
Thickness of Insulation) (mm)		 Minimum Thickness of inner Sh. (mm) ARMOURING WITH FLAT STRIP ( A2XFY/ 2XFY) ARMOURING WITH ROUND WIRES ( A2XWY/ 2XWY)
Nominal
Thickness of armour (mm)		 Minimum
Thickness of outer sheath (mm)		 Approx.
Overall
Diameter (mm)		 Approx. Net Wt of cable (Kg/KM) Nominal
Diameter of wire (mm)		 Minimum
Thickness of outer sheath (mm)		 Approx.
Overall Diameter		 Approx. Net Wt of cable ( Kg/KM)
Al Cu With Al cond With Cu Cond. (mm) With Al cond With Cu Cond
2XFY A2XFY A2XWY XWY
4 — 1/7 0.7 0.30 N/A N/A N/A N/A N/A 1.40 1.24 15 500 550
6 1 1/7 0.7 0.30 N/A N/A N/A N/A N/A 1.40 1.24 16 550 600
10 1 6 0.7 0.30 N/A N/A N/A N/A N/A 1.40 1.24 18 650 770
16 6 6 0.7 0.30 N/A N/A N/A N/A N/A 1.40 1.40 19 700 900
25 6 6 0.9 0.30 0.80 1.40 20 650 950 1.60 1.40 21 850 1150
35 6 6 0.9 0.30 0.80 1.40 21 750 1200 1.60 1.40 23 950 1400
50 6 6 1.0 0.30 0.80 1.40 23 900 1500 1.60 1.40 25 1100 1700
70 12 12 1.1 0.30 0.80 1.56 26 1100 1950 1.60 1.56 28 1400 2250
95 15 15 1.1 0.40 0.80 1.56 29 1350 2500 2.00 1.56 31 1850 3000
120 15 18 1.2 0.40 0.80 1.56 31 1600 3100 2.00 1.56 34 2150 3600
150 15 18 1.4 0.40 0.80 1.72 34 1900 3750 2.00 1.72 37 2450 4300
185 30 30 1.6 0.50 0.80 1.72 37 2250 4500 2.00 1.88 40 2900 5200
240 30 34 1.7 0.50 0.80 1.88 42 2800 5800 2.50 2.04 45 3850 6800
300 30 34 1.8 0.60 0.80 2.04 45 3300 7000 2.50 2.20 49 4450 8200
400 53 53 2.0 0.60 0.80 2.36 50 4100 9050 2.50 2.36 52 5350 10300
500 53 53 2.2 0.70 0.80 2.52 55 5000 11000 3.15 2.68 60 7100 13300
630 53 53 2.4 0.70 0.80 2.68 63 6100 14000 3.15 2.84 66 8500 16300


Electrical Parameters

SIZE cross-sectional area (Sq MM) Max. Cond. D.C. Resistance at 20°C in Ohm/km Approx. Cond. A.C.
Resistance at 90°C in Ohm/km		 App.Reactance at 50HZ in ohms/km App. Capecitance of cable in microF/KM Normal* Current Rating in Amps Short Circuit Current
Rating for 1Sec. duration in K. Amps
With Aluminium cond. With Copper cond.
Al Cu Al Cu Ground Duct Air Ground Duct Air Al Cu
4 --- 4.61 --- 5.90 0.098 0.11 34 28 30 44 37 39 0.376 0.572
6 4.61 3.08 5.90 3.94 0.090 0.13 43 37 40 55 47 50 0.564 0.858
10 3.08 1.83 3.94 2.34 0.084 0.16 57 48 53 74 61 67 0.940 1.430
16 1.91 1.15 2.44 1.47 0.080 0.18 78 61 70 94 78 85 1.50 2.29
25 1.20 0.727 1.54 0.931 0.080 0.20 95 80 99 120 100 125 2.35 3.58
35 0.868 0.524 1.11 0.671 0.080 0.23 116 94 117 145 120 155 3.29 5.01
50 0.641 0.387 0.820 0.495 0.078 0.24 140 110 140 170 145 190 4.70 7.15
70 0.443 0.268 0.567 0.343 0.077 0.26 170 140 176 210 175 235 6.58 10.1
95 0.320 0.193 0.411 0.248 0.074 0.29 200 165 221 250 210 290 8.93 13.59
120 0.253 0.153 0.325 0.197 0.072 0.29 225 185 258 285 240 330 11.28 17.16
150 0.206 0.1240 0.265 0.159 0.072 0.29 255 210 294 315 270 375 14.10 21.45
185 0.164 0.0991 0.211 0.127 0.072 0.29 285 235 339 355 300 435 17.39 26.46
240 0.125 0.0754 0.162 0.0976 0.072 0.31 325 270 402 410 350 510 22.56 34.32
300 0.100 0.0601 0.130 0.0778 0.071 0.33 370 305 461 460 390 590 28.20 42.90
400 0.0778 0.0470 0.1023 0.0618 0.070 0.33 435 350 542 520 440 670 37.60 57.20
500 0.0605 0.0366 0.0808 0.0489 0.070 0.34 481 405 624 580 480 750 47.00 71.50
630 0.0469 0.0283 0.0648 0.0391 0.069 0.36 537 470 723 680 575 875 59.22 90.09

Color Coding: AS IS 1554 ( Indian Standard )

Single Core 2 Core 3 Core 4 Core 5 Core
Red or Black Red, Black Red, Yellow, Blue Red, Yellow, Blue, Black Red, Yellow, Blue, Black, Grey

Color coding: AS IEC 60502 Part-1, B.S. 6346

 Single Core 2 Core 3 Core 4 Core 5 Core
Black or Yellow/Green Blue and Brown or Yellow-Green and Black Brown, Black, Grey or Yellow/Green, Blue, Brown Blue, Brown, Black, Grey or Yellow/Green, Brown, Black, Grey Blue, Brown, Black, Grey, Black or Yellow/Green, Blue, Brown, Black, Grey




Three Core
Conductor: Material - Aluminum /Copper
*Shape : ~AL . Cond :- 6 & 10 SQMM -Solid circular, 16 sqmm & above : Stranded compacted shaped
~Copper. Cond :4&6 sqmm -solid/ stranded non compacted circular, 10 sqmm : Stranded compacted circular,16 sqmm & above : Stranded compacted shaped
INSULATION : Cross linked Polyethylene (XLPE) Red, Yellow, Blue)
INNER SHEATH :PVC as per IS :7098PT-1
ARMOURING :Single layer of Galvanized steel Round wires / Flat Strips
OUTER SHEATH :PVC TYPE ST-2 OF IS : 5831 ‘— OPTIONS : FR TYPE/ FRLS TYPE
COLOR OF OUTER SHEATH: BLACK. OPTIONS : any other color as per requirement.
~ Tabulated approx. net wt. of cables are only guidelines for transportation, loading &unloading purpose

Physical Parameters

SIZE
Cross-
-sectional area (sqmm		 Minimum No of Strands in Conductor Nominal
Thickness of Insulation) (mm)		 Minimum Thickness of inner Sh. (mm) ARMOURING WITH FLAT STRIP ( A2XFY/ 2XFY) ARMOURING WITH ROUND WIRES ( A2XWY/ 2XWY)
Nominal
Thickness of armour strip (mm		 Minimum
Thickness of outer sheath (mm)		 Approx. Overall Diameter (mm Approx. Net Wt
of cable ( Kg/KM) With Al cond  With Cu Cond.		 Nominal
Diameter of wire (mm)		 Minimum
Thickness of outer sheath (mm)		 Approx.
Overall Diameter(mm)		 Approx. Net Wt of cable ( Kg/KM)
Al Cu A2XFaY 2XFaY With Al cond With Cu Cond.
A2XWY 2XWY
4 — 1/7 0.7 0.30 N/A N/A N/A N/A N/A 1.40 1.24 18 600 670
6 1 1/7 0.7 0.30 N/A N/A N/A N/A N/A 1.40 1.24 19 650 770
10 1 6 0.7 0.30 N/A N/A N/A N/A N/A 1.40 1.24 20 750 930
16 6 6 0.7 0.30 0.8 1.24 19 600 900 1.60 1.40 20 800 1100
25 6 6 0.9 0.30 0.8 1.40 21 800 1200 1.60 1.40 23 1000 1450
35 6 6 0.9 0.30 0.8 1.40 23 950 1500 1.60 1.40 25 1200 1850
50 6 6 1.0 0.30 0.8 1.40 26 1100 2000 1.60 1.56 29 1450 2300
70 12 12 1.1 0.40 0.8 1.56 29 1450 2700 2.00 1.56 32 2000 3300
95 15 15 1.1 0.40 0.8 1.56 32 1750 3500 2.00 1.56 35 2350 4100
120 15 18 1.2 0.40 0.8 1.56 35 2100 4200 2.00 1.72 39 2750 4900
150 15 18 1.4 0.50 0.8 1.72 42 2500 5200 2.00 1.88 43 3250 6000
185 30 30 1.6 0.50 0.8 1.88 44 3000 6300 2.50 2.04 48 4200 7500
240 30 34 1.7 0.60 0.8 2.04 49 3750 8200 2.50 2.20 53 5100 9500
300 30 34 1.8 0.60 0.8 2.20 54 4500 10000 2.50 2.36 58 6000 11300
400 53 53 2.0 0.70 0.8 2.52 60 5600 13000 3.15 2.68 65 7950 15200
500 53 53 2.2 0.70 0.8 2.68 66 6900 16000 3.15 2.84 72 9500 18500
630 53 53 2.4 0.70 0.8 2.84 74 8550 20000 4.00 3.00 81 12600 23700


Electrical Parameters

SIZE cross-sectional area (Sq MM) Max. Cond. D.C. Resistance at 20°C in Ohm/km Approx. Cond. A.C.
Resistance at 90°C in Ohm/km		 App.Reactance at 50HZ in ohms/km App. Capacitance of cable in microF/KM Normal* Current Rating in Amps Short Circuit Current
Rating for 1Sec. duration in K. Amps
With Aluminium cond. With Copper cond.
Al Cu Al Cu Ground Duct Air Ground Duct Air Al Cu
4 --- 4.61 --- 5.90 0.098 0.11 34 28 30 44 37 39 0.376 0.572
6 4.61 3.08 5.90 3.94 0.090 0.13 43 37 40 55 47 50 0.564 0.858
10 3.08 1.83 3.94 2.34 0.084 0.16 57 48 53 74 61 67 0.940 1.430
16 1.91 1.15 2.44 1.47 0.080 0.18 78 61 70 94 78 85 1.50 2.29
25 1.20 0.727 1.54 0.931 0.080 0.20 95 80 99 120 100 125 2.35 3.58
35 0.868 0.524 1.11 0.671 0.080 0.23 116 94 117 145 120 155 3.29 5.01
50 0.641 0.387 0.820 0.495 0.078 0.24 140 110 140 170 145 190 4.70 7.15
70 0.443 0.268 0.567 0.343 0.077 0.26 170 140 176 210 175 235 6.58 10.01
95 0.320 0.193 0.411 0.248 0.074 0.29 200 165 221 250 210 290 8.93 13.59
120 0.253 0.153 0.325 0.197 0.072 0.29 225 185 258 285 240 330 11.28 17.16
150 0.206 0.1240 0.265 0.159 0.072 0.29 255 210 294 315 270 375 14.10 21.45
185 0.164 0.0991 0.211 0.127 0.072 0.29 285 235 339 355 300 435 17.39 26.46
240 0.125 0.0754 0.162 0.0976 0.072 0.31 325 270 402 410 350 510 22.56 34.32
300 0.100 0.0601 0.130 0.0778 0.071 0.33 370 305 460 460 390 590 28.20 42.90
400 0.0778 0.0470 0.1023 0.0618 0.070 0.33 435 350 542 520 440 670 37.60 57.20
500 0.0605 0.0366 0.0808 0.0489 0.070 0.34 481 405 624 580 480 750 47.00 71.50
630 0.0469 0.0283 0.0648 0.0391 0.069 0.36 537 470 723 680 575 875 59.22 90.09

Color Coding: AS IS 1554 ( Indian Standard )

Single Core 2 Core 3 Core 4 Core 5 Core
Red or Black Red, Black Red, Yellow, Blue Red, Yellow, Blue, Black Red, Yellow, Blue, Black, Grey

Color coding: AS IEC 60502 Part-1, B.S. 6346

 Single Core 2 Core 3 Core 4 Core 5 Core
Black or Yellow/Green Blue and Brown or Yellow-Green and Black Brown, Black, Grey or Yellow/Green, Blue, Brown Blue, Brown, Black, Grey or Yellow/Green, Brown, Black, Grey Blue, Brown, Black, Grey, Black or Yellow/Green, Blue, Brown, Black, Grey




Three & Half Cores
Conductor: Material - Aluminium /Copper
*Shape : Stranded compacted shaped as per class-2 of IS:8130
INSULATION :Cross linked Polyethylene (XLPE) (Phase, Red, Yellow, Blue & Neutral - Black Color
INNER SHEATH :PVC as per IS :7098PT-1
ARMOURING :Single layer of Galvanized steel Round wires / Flat Strips
OUTER SHEATH :PVC TYPE ST-2 OF IS : 5831 ‘— OPTIONS : FR TYPE/ FRLS TYPE
COLOR OF OUTER SHEATH : BLACK . OPTIONS : any other color as per requirement.


Physical Parameters

SIZE cross-sectional area (Sq MM) Max. Cond. D.C. Resistance at 20°C in Ohm/km Approx. Cond. A.C.
Resistance at 90°C in Ohm/km		 App.Reactance at 50HZ in ohms/km App. Capacitance of cable in microF/KM Normal* Current Rating in Amps Short Circuit Current
Rating for 1Sec. duration in K. Amps
With Aluminium cond. With Copper cond.
Al Cu Al Cu Ground Duct Air Ground Duct Air Al Cu
4 --- 4.61 --- 5.90 0.098 0.11 34 28 30 44 37 39 0.376 0.572
6 4.61 3.08 5.90 3.94 0.090 0.13 43 37 40 55 47 50 0.564 0.858
10 3.08 1.83 3.94 2.34 0.084 0.16 57 48 53 74 61 67 0.940 1.430
16 1.91 1.15 2.44 1.47 0.080 0.18 78 61 70 94 78 85 1.50 2.29
25 1.20 0.727 1.54 0.931 0.080 0.20 95 80 99 120 100 125 2.35 3.58
35 0.868 0.524 1.11 0.671 0.080 0.23 116 94 117 145 120 155 3.29 5.01
50 0.641 0.387 0.820 0.495 0.078 0.24 140 110 140 170 145 190 4.70 7.15
70 0.443 0.268 0.567 0.343 0.077 0.26 170 140 176 210 175 235 6.58 10.01
95 0.320 0.193 0.411 0.248 0.074 0.29 200 165 221 250 210 290 8.93 13.59
120 0.253 0.153 0.325 0.197 0.072 0.29 225 185 258 285 240 330 11.28 17.16
150 0.206 0.1240 0.265 0.159 0.072 0.29 255 210 294 315 270 375 14.10 21.45
185 0.164 0.0991 0.211 0.127 0.072 0.29 285 235 339 355 300 435 17.39 26.46
240 0.125 0.0754 0.162 0.0976 0.072 0.31 325 270 402 410 350 510 22.56 34.32
300 0.100 0.0601 0.130 0.0778 0.071 0.33 370 305 460 460 390 590 28.20 42.90
400 0.0778 0.0470 0.1023 0.0618 0.070 0.33 435 350 542 520 440 670 37.60 57.20
500 0.0605 0.0366 0.0808 0.0489 0.070 0.34 481 405 624 580 480 750 47.00 71.50
630 0.0469 0.0283 0.0648 0.0391 0.069 0.36 537 470 723 680 575 875 59.22 90.09


Electrical Parameters

SIZE cross-sectional area (Sq MM) Max. Cond. D.C. Resistance at 20°C in Ohm/km Approx. Cond. A.C.
Resistance at 90°C in Ohm/km		 App..Reactance at 50HZ in ohms/km App. Capecitance of cable in microF/KM Normal* Current Rating in Amps Short Circuit Current Rating for 1Sec.duration in K. Amps
With Aluminium cond. With Copper cond
Al Cu Al Cu Ground Duct Air Ground Duct Air Al Cu
3X25+16 1.20 0.727 1.54 0.931 0.080 0.20 95 80 99 120 100 125 2.35 3.58
3X35+16 0.868 0.524 1.11 0.671 0.080 0.23 116 94 117 145 120 155 3.29 5.01
3X50+25 0.641 0.387 0.820 0.495 0.078 0.24 140 110 140 170 145 190 4.70 7.15
3X70+35 0.443 0.268 0.567 0.343 0.077 0.26 170 140 176 210 175 235 6.58 10.01
3X95+50 0.320 0.193 0.411 0.248 0.074 0.29 200 165 221 250 210 290 8.93 13.59
3X120+70 0.253 0.153 0.325 0.197 0.072 0.29 225 185 258 285 240 330 11.28 17.16
3X150+70 0.206 0.1240 0.265 0.159 0.072 0.29 255 210 294 315 270 375 14.10 21.45
3X185+95 0.164 0.0991 0.211 0.127 0.072 0.29 285 235 339 355 300 435 17.39 26.46
3X240+120 0.125 0.0754 0.162 0.098 0.072 0.31 325 270 402 410 350 510 22.56 34.32
3X300+150 0.100 0.0601 0.130 0.078 0.071 0.33 370 305 461 460 390 590 28.20 42.90
3X400+185 0.0778 0.0470 0.1023 0.0618 0.070 0.33 435 350 542 520 440 670 37.60 57.20
3X500+240 0.0605 0.0366 0.0808 0.0489 0.070 0.34 481 405 624 580 480 750 47.00 71.50
3X630+300 0.0469 0.0283 0.0648 0.0391 0.069 0.36 537 470 723 680 575 875 59.22 90.09

Color Coding: AS IS 1554 ( Indian Standard )

Single Core 2 Core 3 Core 4 Core 5 Core
Red or Black Red, Black Red, Yellow, Blue Red, Yellow, Blue, Black Red, Yellow, Blue, Black, Grey

Color coding: AS IEC 60502 Part-1, B.S. 6346

 Single Core 2 Core 3 Core 4 Core 5 Core
Black or Yellow/Green Blue and Brown or Yellow-Green and Black Brown, Black, Grey or Yellow/Green, Blue, Brown Blue, Brown, Black, Grey or Yellow/Green, Brown, Black, Grey Blue, Brown, Black, Grey, Black or Yellow/Green, Blue, Brown, Black, Grey




Four Cores
Conductor: Material - Aluminium /Copper
*Shape : ~AL . Cond :- 6 & 10 SQMM -Solid circular, 16 sqmm & above : Stranded compacted shaped
~Copper. Cond :4&6 sqmm -solid/ stranded non compacted circular, 10 sqmm : Stranded compacted circular,16 sqmm & above : Stranded compacted shaped
INSULATION : Cross linked Polyethylene (XLPE) (Red, Yellow, Blue & Black)
INNER SHEATH :PVC as per IS :7098PT-1
ARMOURING :Single layer of Galvanized steel Round wires / Flat Strips
OUTER SHEATH : PVC TYPE ST-2 OF IS : 5831 ‘— OPTIONS : FR TYPE/ FRLS TYPE
~ Tabulated approx. net wt. of cables are only guidelines for transportation, loading &unloading purpose

Physical Parameters

SIZE Cross- -sectional area (sqmm) Conductor Minimum No of Strands in Nominal Thickness of Insulation) (mm) Minimum Thickness of inner Sh. (mm) ARMOURING WITH FLAT STRIP ( A2XFY/2XFY) ARMOURING WITH ROUND WIRES ( A2XWY/ 2XWY)
Nominal Thickness of armour strip (mm) Minimum Thickness of outer sheath (mm) Approx. Overall Diameter (mm Approx. Net Wt of cable (Kg/KM) Nominal Diameter of wire (mm) Minimum
Thickness of outer sheath D (mm)		 Approx. Overall iameter Approx. Net Wt of cable ( Kg/KM)
Al Cu With Al cond With Cu Cond (mm) With Al cond With Cu Cond
A2XFY 2XYF A2XWY 2XWY
4 — 1/7 0.7 0.30 N/A N/A N/A N/A N/A 1.40 1.24 18 550 650
6 1 1/7 0.7 0.30 N/A N/A N/A N/A N/A 1.40 1.24 19 600 750
10 1 6 0.7 0.30 N/A N/A N/A N/A N/A 1.40 1.40 21 670 950
16 6 6 0.7 0.30 0.80 1.40 20 700 1100 1.60 1.40 22 925 1300
25 6 6 0.9 0.30 0.80 1.40 24 900 1500 1.60 1.40 26 1200 1770
35 6 6 0.9 0.30 0.80 1.40 27 1100 2000 1.60 1.40 28 1450 2200
50 6 6 1.0 0.30 0.80 1.56 30 1400 2500 1.60 1.56 32 1750 2850
70 12 12 1.1 0.40 0.80 1.56 34 1800 3400 2.00 1.56 37 2400 4000
95 15 15 1.1 0.40 0.80 1.56 37 2200 4400 2.00 1.72 40 2900 5150
120 15 18 1.2 0.50 0.80 1.72 41 2700 5600 2.00 1.88 44 3500 6300
150 15 18 1.4 0.50 0.80 1.88 46 3200 6800 2.50 2.04 49 4500 8000
185 30 30 1.6 0.50 0.80 2.04 51 3900 8300 2.50 2.20 54 5200 9700
240 30 34 1.7 0.60 0.80 2.20 57 4850 10500 2.50 2.36 65 6400 12000
300 30 34 1.8 0.70 0.80 2.36 63 5850 13000 3.15 2.52 68 8300 15400
400 53 53 2.0 0.70 0.80 2.68 71 7320 17000 3.15 2.84 76 10000 19500
500 53 53 2.2 0.70 0.80 2.84 79 9000 21000 4.00 3.00 86 13500 25000
630 53 53 2.4 0.70 0.80 3.00 88 11000 27000 4.00 3.00 94 16000 30500


Electrical Parameters

SIZE cross-sectional area (Sq MM) Max. Cond. D.C. Resistance at 20°C in Ohm/km Approx. Cond. A.C.
Resistance at 90°C in Ohm/km		 App.Reactance at 50HZ in ohms/km App. Capecitance of cable in microF/KM Normal* Current Rating in Amps Short Circuit Current
Rating for 1Sec. duration in K. Amps
With Aluminium cond With Copper cond.
Al Cu Al Cu Ground Duct Air Ground Duct Air Al Cu
4 — 4.61 — 5.90 0.098 0.11 34 28 30 44 37 39 0.376 0.572
6 4.61 3.08 5.90 3.94 0.090 0.13 43 37 40 55 47 50 0.564 0.858
10 3.08 1.83 3.94 2.34 0.084 0.16 57 48 53 74 61 67 0.940 1.430
16 1.91 1.15 2.44 1.47 0.080 0.18 78 61 70 94 78 85 1.50 2.29
25 1.20 0.727 1.54 0.931 0.080 0.20 95 80 99 120 100 125 2.35 3.58
35 0.868 0.524 1.11 0.671 0.080 0.23 116 94 117 145 120 155 3.29 5.01
50 0.641 0.387 0.820 0.495 0.078 0.24 140 110 140 170 145 190 4.70 7.15
70 0.443 0.268 0.567 0.343 0.077 0.26 170 140 176 210 175 235 6.58 10.01
95 0.320 0.193 0.411 0.248 0.074 0.29 200 165 221 250 210 290 8.93 13.59
120 0.253 0.153 0.325 0.197 0.072 0.29 225 185 258 285 240 330 11.28 17.16
150 0.206 0.1240 0.265 0.159 0.072 0.29 255 210 294 315 270 375 14.10 21.45
185 0.164 0.0991 0.211 0.127 0.072 0.29 285 235 339 355 300 435 17.39 26.46
240 0.125 0.0754 0.162 0.0976 0.072 0.31 325 270 402 410 350 510 22.56 34.32
300 0.100 0.0601 0.130 0.0778 0.071 0.33 370 305 460 460 390 590 28.20 42.90
400 0.0778 0.0470 0.1023 0.0618 0.070 0.33 435 350 542 520 440 670 37.60 57.20
500 0.0605 0.0366 0.0808 0.0489 0.070 0.34 481 405 624 580 480 750 47.00 71.50
630 0.0469 0.0283 0.0648 0.0391 0.069 0.36 537 470 723 680 575 875 59.22 90.09

Color Coding: AS IS 1554 ( Indian Standard )

Single Core 2 Core 3 Core 4 Core 5 Core
Red or Black Red, Black Red, Yellow, Blue Red, Yellow, Blue, Black Red, Yellow, Blue, Black, Grey

Color coding: AS IEC 60502 Part-1, B.S. 6346

 Single Core 2 Core 3 Core 4 Core 5 Core
Black or Yellow/Green Blue and Brown or Yellow-Green and Black Brown, Black, Grey or Yellow/Green, Blue, Brown Blue, Brown, Black, Grey or Yellow/Green, Brown, Black, Grey Blue, Brown, Black, Grey, Black or Yellow/Green, Blue, Brown, Black, Grey


CE =The Product is confirmed with the EC to the Low Voltage Directive 73/23/EEC
