RIALTO Submersible Flat Cables are specially designed to provide reliable and long-lasting power supply to submersible pumps and motors used in agriculture, industrial, and domestic applications. Manufactured using high-grade electrolytic copper and superior quality PVC insulation and sheathing, these cables ensure excellent performance even in harsh and submerged conditions.

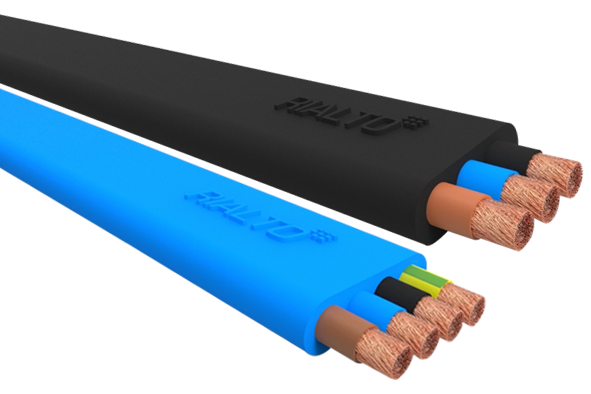

Available in both 3 Core and 4 Core options, these flat cables are suitable for various submersible pump applications where flexibility, durability, and safety are essentia
Download PDFRialto’s 3 Core and 4 Core Flat Pump Cables are engineered for exceptional flexibility, durability, and consistent electrical performance. Crafted from high-quality materials and manufactured with precision, these cables are specifically designed for demanding submersible applications.
| CABLE STRUCTURE | |
|---|---|
| Generally Conforms to, | BS EN 50525, CENELEC HD 21, UL-83, IEC 60227, BS 6500, DIN VDE 0281,IS 694 |
| Copper : | EC flexible copper conforms to IEC 60228, DIN VDE 0295,IS 8131 |
| Insulation : | PVC insulation compound TI-1 |
| Outer Sheath : | Special PVC : Black, Blue |
| TECHNICAL DATA | |
|---|---|
| Operating Temperature: | - 200 to max. +800 |
| Nominal Voltage: | 1100v |
| Test Voltage: | 3000v |
| Min. Bending Radius: | 6 x Cable diameter |
| Flame Propagation: | Flame retardant test as per IEC 60332-1 |
