RV-K cable is a flexible, low-voltage power cable designed for industrial power distribution systems. It is constructed with electrolytic annealed copper conductors and insulated with cross-linked polyethylene (XLPE) and an outer sheath of PVC or equivalent thermoplastic. It offers excellent mechanical strength, flexibility, and resistance to moisture, chemicals, and UV radiation.

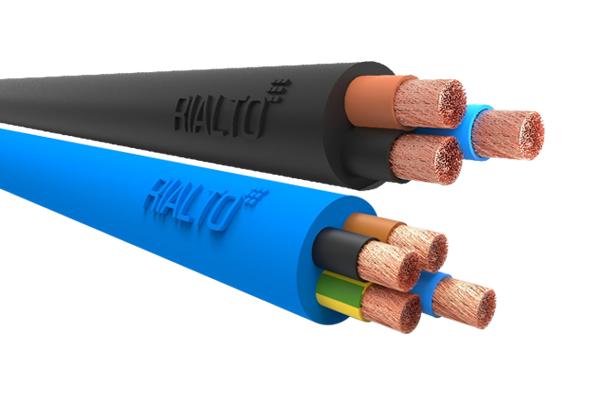

Download PDFRialto RV-K Pump Cables are heavy-duty, flexible power cables designed for submersible motors and demanding installations. They offer excellent resistance to water, oil, and mechanical stress.
| CABLE STRUCTURE | |
|---|---|
| Generally Conforms to, | Class-5 Flexible Plain Copper to VDE 0295 IEC 60228, IEC 60502-1 |
| Copper : | EC flexible copper generally conforms to IEC 60228, DIN VDE 0295,IS 8131 |
| Insulation : | XLPE |
| Outer Sheath : | Special PVC:Black, Blue |
*Any color can be supplied as per the requirement and wish of the buyer.
| TECHNICAL DATA | |
|---|---|
| Operating Temperature: | -15°C to +90°C |
| Conductor: | Electrolytic annealed flexible copper (Class 5) |
| Test Voltage: | 0.6/1 kV |
| Min. Bending Radius: | 5 × outer diameter |
| Flame Propagation: | IEC 60332-1 compliant |
