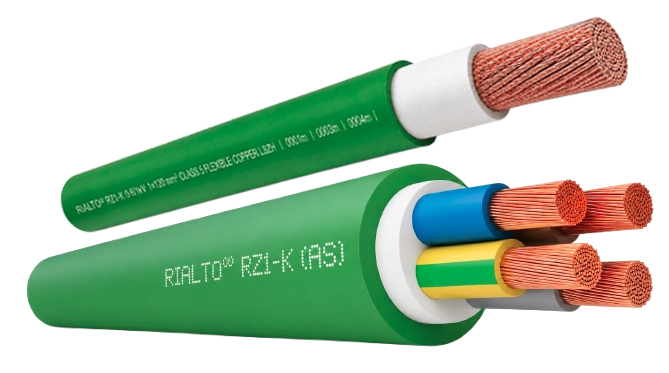

RZ1-K 0.6/1 kV is a flexible, halogen-free low voltage power cable for fixed installations in industrial, commercial, and building infrastructure applications. It features XLPE insulation and a LSZH/HFFR outer sheath, providing excellent electrical performance, mechanical strength, and enhanced fire safety with low smoke and zero halogen emissions.
Available from 1.5 sq.mm to 240 sq.mm, in single-core to 5-core configurations, it is rated at 0.6/1 kV and manufactured in accordance with IEC 60502-1 and IEC 60228 standards.
The RZ1-K cable is suitable for low voltage power distribution in fixed installations, both indoor and outdoor, including industrial facilities, commercial buildings, public infrastructure, and utility networks where enhanced fire safety is required. It is designed for a 0.6/1 kV voltage rating and is manufactured in accordance with IEC 60502-1 and IEC 60228 international standards.
| CABLE STRUCTURE | |
|---|---|
| Parameter | Specification |
| Generally Conforms to | IEC 60228, IEC 60502-1 |
| Copper | Electrolytic annealed flexible plain copper (Class 5) conforming to IEC 60228 |
| Insulation | XLPE (Cross-linked Polyethylene) |
| Outer Sheath | LSZH / HFFR (Low Smoke Zero Halogen), typically Green, Black or as specified |
*Any color can be supplied as per the requirement and wish of the buyer.
| TECHNICAL DATA | |
|---|---|
| Operating Temperature | -15°C to +90°C |
| Conductor | Electrolytic annealed flexible copper (Class 5) |
| Rated Voltage | 0.6/1 kV |
| Minimum Bending Radius | 5 × Overall Diameter |
| Flame Propagation | IEC 60332-1 |
| Halogen Free | IEC 60754-1 & IEC 60754-2 |
| Low Smoke Emission | IEC 61034-2 |
